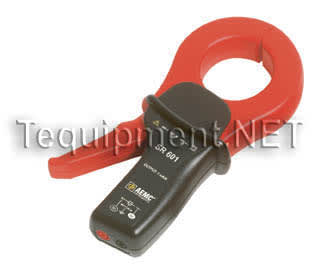

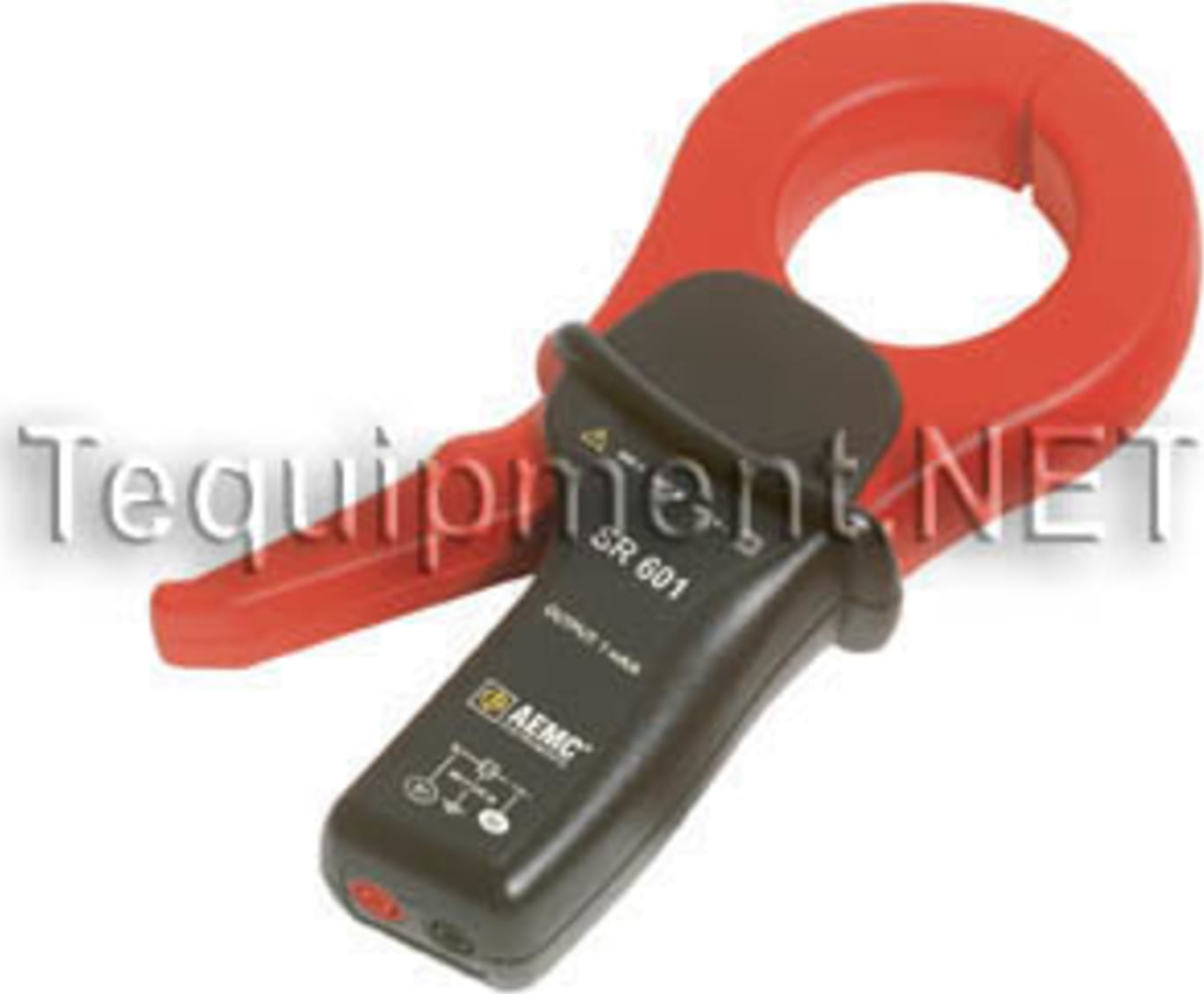

| AEMC 2116.31 Specifications |
| Electrical Specifications |
| Operating Range |
1mA to 1200A |
| Operating Range |
| Current Range |
.001 to 1000AAC |
| Frequency Range |
30Hz to 5kHz; current derating above 1kHz using the formula: (1000A * ) / F (in kHz) |
| Common Mode Voltage |
600VAC |
| Current Overload |
1200A for 40 min ON, 20 min OFF |
| Load Impedance |
100kW min |
| Open Secondary Voltage |
< 25V by limiting circuit |
| Reference Conditions |
23°C ±3°K, 20 to 75% RH, 48 to 65Hz, external magnetic field <40A/m, no DC component, no external current carrying conductor, test sample centered. Load impedance 1MW |
| Working Voltage |
600V, Cat. III |
| Influence of Adjacent Conductor |
| Influence of Adjacent Conductor |
<0.5mA/AAC |
| Influence of Conductor Position |
| Influence of Conductor Position |
0.1% of Reading @ 50/60Hz |
| Influence of Frequency |
| Range Value |
30 to 48Hz / 65 to 1000Hz / 1 to 5kHz |
| Influence of Frequency |
< 0.5% of Reading / < 1% of Reading / < 2% of Reading |
| Influence of Humidity |
| Influence of Humidity |
10 to 90%: £0.1% |
| Output Signal |
| Output Signal |
1mVAC/AAC (1VAC at 1000A) |
| Accuracy |
| Accuracy |
Per IEC 185-26-27 |
| Mechanical Specifications |
| Altitude |
Operating: 0 to 2000m; Non-operating: 0 to 12km |
| Colors |
Dark gray handles with red jaws |
| Dimensions |
4.37 x 8.50 x 1.77" (111 x 216 x 45mm) |
| Drop Test |
1m (IEC 68-2-32) |
| Jaw Opening |
2.25" (57mm) max |
| Material |
Handles: Polycarbonate +ABS Gray: UL 94 V0; Jaws: Polycarbonate, Red: UL 94 V0 |
| Maximum Bus Bar Size |
1.95 x 0.19" (50 x 5mm) |
| Maximum Cable Diameter |
2.05" (52mm) |
| Mechanical Shock |
100g (IEC 68-2-27) |
| Operating Temperature |
14° to 122°F (-10° to 50°C) |
| Operating Relative Humidity |
0 to 85% @ 35°C |
| Output |
Two standard safety banana jacks (4mm) |
| Protection Index (IP) |
IP 40 (IEC 529) |
| Impact Test |
IK04 0.5 J EN50102 |
| Storage Temperature |
-4° to 158°F (-20° to 70°C) |
| Vibration |
Test per IEC 68-2-6 |
| Vibration |
| Range Value |
5 to 15Hz / 15 to 25Hz / 25 to 55Hz |
| Vibration |
Amplitude: 0.15 mm per IEC 68-2-6 / Amplitude: 1 mm per IEC 68-2-6 Amplitude : 0.25 mm per IEC 68-2-6 |
| Weight |
1.21 lbs (550g) |
| External Influences |
| Influence of Temperature |
£0.15% per 10K° |
| Safety Reference Specifications |
| Safety Ratings |
EN 61010-2-32 |
| Agency Approvals |
CE Mark |
