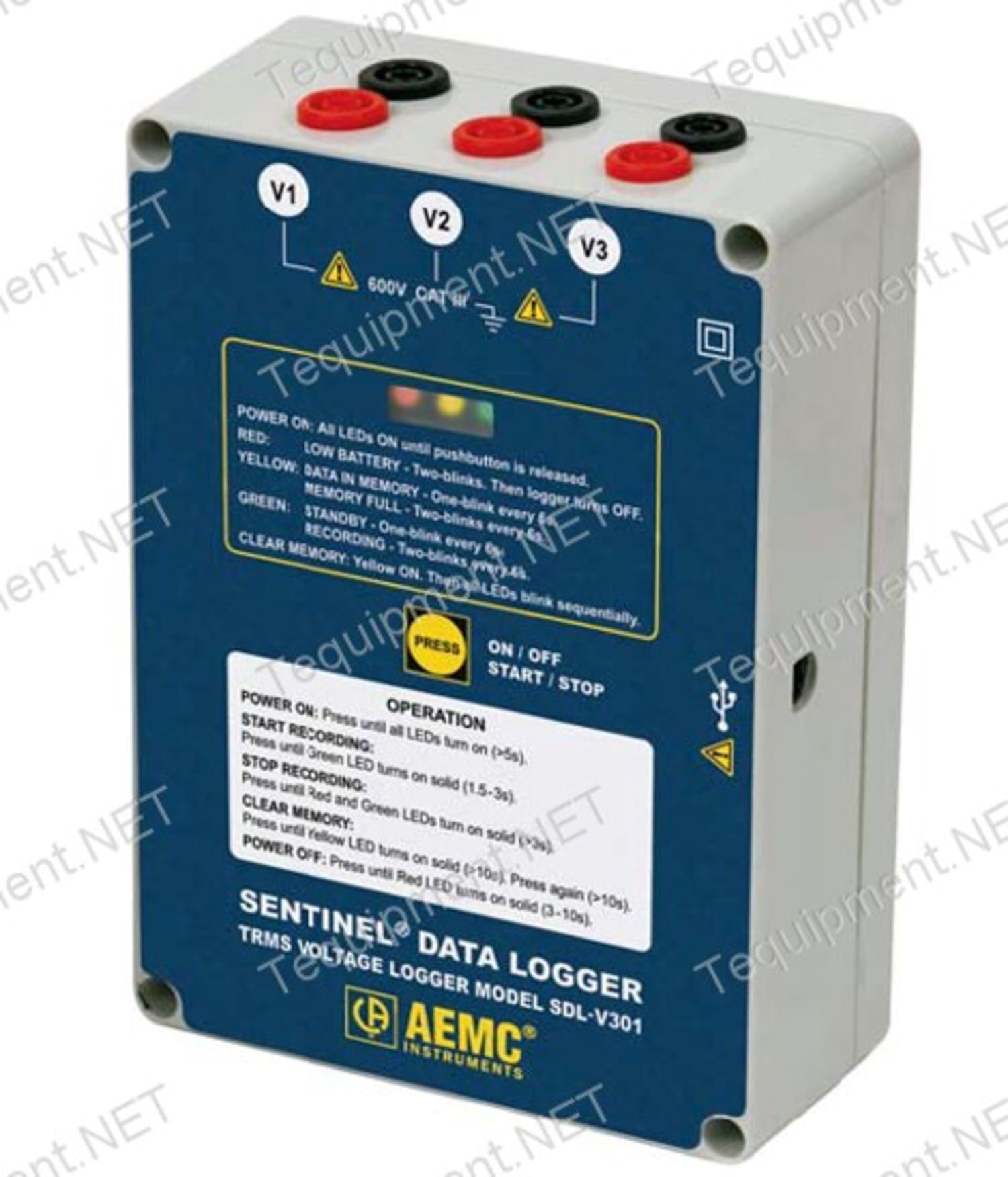

AEMC 2134.1 - Sentinel Voltage Logger Model SDL V301

Name: AEMC 2134.1 - Sentinel Voltage Logger Model SDL V301
Brand: AEMC Instruments
SKU: AEMC2134.10
Price: 660.25 USD
Availability: InStock

0 reviews | UPC: 068533814020 | Model: AEMC Instruments 2134.1

Compare

Sentinel Voltage Logger Model SDL V301

True RMS voltage measurements
DC voltage measurements
Low-cost, self contained, portable
Differential three-phase inputs
Programmable storage mode
Programmable data storage rate
Records up to 480,000 measurements (1MB)
64 samples per cycle
Includes DataView Software
Optically isolated USB 2.0 communication
600V Cat. lll, 300V Cat. IV

View Product Details

List Price: $695.00

In Stock:

View Payment Options

Recommended for you

AEMC 2134.1 - Sentinel Voltage Logger Model SDL V301

AEMC Sentinel Voltage Logger Model SDL V301

True RMS voltage measurements
DC voltage measurements
Low-cost, self-contained, portable
Differential three-phase inputs
Programmable storage mode

The Sentinel Voltage Logger Model SDL V301 is a battery-powered three-channel voltage recording device designed to record voltages up to 600VAC or 850VDC. Real-time display of waveforms and harmonics is available with the DataView? software, which is included. Programmable storage rate and storage modes, combined with simple one button operation, make this a versatile and easy-to-use data logger, perfect for a variety of applications.

Includes leads and clips (3 pairs of red and black), and four C-cell batteries.

Applications

Phase unbalance monitoring
Surge and Sag recording
Line surveys
Battery bank monitoring

AEMC 2134.1 Specifications
ELECTRICAL
Number of Channels	Three
Input Termination	Recessed banana jacks
Voltage Range	0 to 600VAC; 0 to 850VDC
Resolution	0.1V
Accuracy	5 to 85V: ?1% of Reading ? 0.6V 85 to 600VAC/850VDC: ?0.25% of Reading ? 0.6V
Sample Rate	64 samples/cycle
Storage Rate	Programmable from 250ms to 12 hours
Storage Technique	Stop when full, FIFO, and Extended Recording Mode (XRM?)
Memory Capacity	480,000 measurements (1MB)
Communication	USB 2.0 optically isolated
Controls	One button to turn logger on/off and start/stop recording
Indicators	Red, Yellow and Green status indicators
Power Source	Four 1.5V C Alkaline batteries
Battery Life*	100 hours to 90 days
MECHANICAL
Protection Index	IP50
Dimensions	6.73 x 4.76 x 2.17" (171 x 121 x 55mm)
Case Material	Polycarbonate UL94 V-2
ENVIRONMENTAL
Operating Temperature	14? to 122?F (-10? to 50?C)
Storage Temperature	-4? to 140?F (-20? to 60?C)
Relative Humidity	0 to 85% RH
SAFETY
Safety Rating	600V Cat. III, 300V Cat. IV
Double Insulation	Yes
