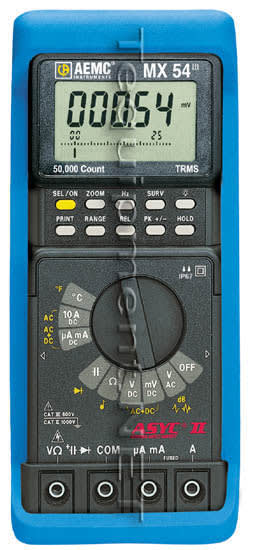

AEMC 2116.7 Specifications |
AC Current |
RANGE |
500µA / 5mA / 50mA / 500mA / 10A |
SCALE |
5% to 100% of range |
FREQUENCY RANGE |
DC (AC+DC only) or 40Hz to 5kHz |
ACCURACY |
0.75% Reading + 30D / 0.6% Reading + 30D / 0.7% Reading + 30D / 1% Reading + 30D up to 2kHz |
PROTECTION |
600VRMS |
FUSES |
F1 + F2 |
RESOLUTION |
10nA / 100nA / 1µA / 10µA / 1mA |
DC Voltage |
SELECTOR SWITCH POSITION |
mV / VDC |
RANGE |
500mV / 5V / 50V / 500V / 1000V |
ACCURACY |
0.05% Reading + 2D |
INPUT IMPEDANCE |
10MW/1GW (refer to § 3.4) / 11MW / 10MW |
PROTECTION |
±1100 VPK (1 min max) / ±1100 VPK |
RESOLUTION |
10µV / 100µV / 1mV / 10mV / 100mV |
DC Current |
SELECTOR SWITCH POSITION |
µA mA / 10A |
RANGE |
500µA / 5mA / 50mA / 500mA / 10A |
ACCURACY |
0.2% Reading + 5D / 0.2% Reading + 2D / 0.05% Reading + 2D / 0.2% Reading + 2D / 0.5% Reading + 5D |
MAX VOLTAGE DROP |
700mV / 1.5V / 500mV |
PROTECTION |
600VRMS |
FUSES |
F1 + F2 / F2 |
RESOLUTION |
10nA / 100nA / 1µA / 10µA / 1mA |
Resistance |
RANGE |
50W/musical / 5kW / 50kW / 500kW / 5MW / 50MW |
ACCURACY |
0.07% Reading + 5D / 0.07% Reading + 2D / 0.3% Reading + 2D / 1% Reading + 2D |
MEASUREMENT CURRENT |
1mA / 100µA / 10µA / 1µA / 100nA / 10nA |
PROTECTION |
600VRMS (Overload protection can be reset automatically) |
RESOLUTION |
10mW / 100mW / 1W / 10W / 100W / 1kW |
COMMENTS |
It is highly recommended to use very short test leads for measurements in this range |
Diode Test |
MEASURABLE VOLTAGES |
0 to 2V |
MEASUREMENT CURRENT |
1mA ±20% |
RESOLUTION |
1mV |
PROTECTION |
600VRMS can be reset automatically |
Frequency |
SELECTOR SWITCH SETTING |
VAC, mV, VDC, mA, 10A |
ACCURACY |
0.03% |
PROTECTION |
1100VPK in VAC, mV, VDC modes; 600VRMS (F1 + F2) in mA mode; 600VRMS (F2) in 10A mode |
DISPLAY |
50,000 points |
RANGE |
0.62Hz to 5kHz / 5 to 50kHz |
SENSITIVITY RANGE |
500mV / 5V to 500V or 500µA to 500mA / 750V / 10A / 500mV / 5V to 500V or 500µA to 500mA |
SELECTOR SWITCH SETTING |
VAC, mV, VDC, mA, 10A |
ACCURACY |
0.03% |
PROTECTION |
1100VPK in VAC, mV, VDC modes; 600VRMS (F1 + F2) in mA mode; 600VRMS (F2) in 10A mode |
DISPLAY |
50,000 points |
RANGE |
5 to 50kHz / 50 to 500kHz |
SENSITIVITY RANGE |
750V / 10A / 5V to 500V or 500µA to 500mA / 10A |
Duty Cycle |
RESOLUTION |
0.01% |
MINIMUM DURATION FOR 0 OR T-0 |
2µs |
MAXIMUM DURATION FOR T |
0.8s |
MINIMUM DURATION FOR T |
100µs |
ABSOLUTE ERROR AS A % |
3.10-4/T |
SENSITIVITY |
see sensitivity in frequency measurement mode |
ABSOLUTE ADDITIONAL ERROR |
0.1 x 0.1 x C/P, with C: V or A range (C=5000V for 1000VDC or 750VAC ranges and C = 50A for 10A ranges), and with P: slope in V/s or in A/s |
Noise |
PRESENCE OF SPIKES |
>80V, in the 1kHz - 100kHz band, by a 3 bar l l l display next to the spike detection symbol |
PRESENCE OF NOISE LEVEL |
>25V in the 1kHz to 1000kHz band, by a bar l l l display next to the noise detection symbol |
THE RMS VALUE OF THE MAINS VOLTAGE |
50 or 60Hz in the 500VAC range, accurate to 1% |
Measurement Rate |
Digital Display |
2 measurements/s |
Bargraph |
20 measurements/s |
General Specifications |
Power Supply |
9V alkaline battery (6LF22) |
Battery Life |
The typical life of 500 hours in VDC mode |
Mechanical Dimensions |
7.4 x 3.2 x 1.6" (189 X 82 X 40 mm) |
Packing Dimensions |
9.1 x 6.1 x 2.6" (230 X 155 X 65mm) |
Weight |
.9 lbs (400g) |
Packaging Weight |
500g |
Environmental Specification |
Environment |
Indoor use |
Altitude |
<2000m |
Reference Temperature |
18°C to 28°C |
