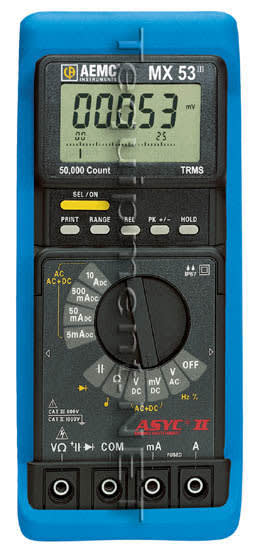

| AEMC 2116.69 Specifications |
| AC Current |
| SELECTOR SWITCH POSITION |
5mA / 50mA / 500mA / 10A |
| FREQUENCY RANGE |
DC (AC+DC only) or 40Hz to 5kHz |
| ACCURACY |
1% Reading +3D / 1.5% Reading +3D up to 2kHz |
| MAX VOLTAGE DROP |
700mV / 700Mv / 1.5V / 500mV |
| PROTECTION |
600VRMS |
| FUSES |
F1 + F2 / F2 |
| RESOLUTION |
1µA / 10µA / 100µA / 10mA |
| DC Voltage |
| SELECTOR SWITCH POSITION |
mV / VDC |
| RANGE |
500mV / 5V / 50V / 500V / 1000V |
| ACCURACY |
0.1% Reading + 2D |
| INPUT IMPEDANCE |
10MW / 11MW / 10MW |
| PROTECTION |
±1100 VPK (1 min max) / ±1100 VPK |
| RESOLUTION |
10µV / 100µV / 1mV / 10mV / 100mV |
| DC Current |
| SELECTOR SWITCH POSITION |
5mA / 50mA / 500mA / 10A |
| ACCURACY |
0.2% Reading + 2D / 0.5% Reading + 2D |
| MAX VOLTAGE DROP |
700mV / 1.5V / 500mV |
| PROTECTION |
600VRMS |
| FUSES |
F1 + F2 / F2 |
| RESOLUTION |
100nA / 1µA / 10µA / 1mA |
| Resistance |
| RANGE |
5kW / 50kW / 500kW / 5MW / 50MW / 500W/has buzzer |
| ACCURACY |
0.1% Reading + 3D / 0.3% Reading + 3D / 1% Reading + 3D / 0.1% Reading + 5D |
| MEASUREMENT CURRENT |
100µA / 10µA / 1µA / 100nA / 10nA / 1mA |
| PROTECTION |
600VRMS (Overload protection can be reset automatically) |
| RESOLUTION |
100mW / 1W / 10W / 100W / 1kW / 10mW |
| COMMENTS |
It is highly recommended to use very short test leads for measurements in this range |
| Diode Test |
| MEASURABLE VOLTAGES |
0 to 2V |
| MEASUREMENT CURRENT |
1mA ±20% |
| RESOLUTION |
1mV |
| PROTECTION |
600VRMS, can be reset automatically |
| Capacitance |
| RANGE |
50nF / 500nF / 5mF / 50mF / 500mF / 5000mF |
| ACCURACY |
1% Reading + 2D / 2% Reading + 2D |
| MEASUREMENT CURRENT |
100nA / 1mA / 10mA / 100mA / 1mA |
| MAX MEASUREMENT TIME |
0.5s / 1.5s / 3s/mF |
| PROTECTION |
600VRMS (Overload protection can be reset automatically) |
| RESOLUTION |
10pF / 100pF / 1nF / 10nF / 100nF / 1mF |
| RANGE |
50mF |
| ACCURACY |
2% Reading + 2D |
| MEASUREMENT CURRENT |
1mA |
| MAX MEASUREMENT TIME |
3s/mF |
| PROTECTION |
600VRMS (Overload protection can be reset automatically) |
| RESOLUTION |
10mF |
| Frequency |
| SELECTOR SWITCH SETTING |
VAC + SEL/ON |
| ACCURACY |
0.03% |
| PROTECTION |
1100VPK |
| DISPLAY |
50,000 points |
| RANGE |
0.62Hz to 5kHz (Rectangular signals) / 5 to 50kHz / 50 to 500kHz / 0.62Hz to 5kHz (Rectangular signals) / 5 to 50kHz |
| SENSITIVITY RANGE |
5 to 500V / 750V |
| SENSITIVITY |
2% of range / 5% of range / 10% of range / 100V / 250V |
| Duty Cycle |
| RESOLUTION |
0.01% |
| MINIMUM DURATION FOR 0 OR T-0 |
2µs |
| MAXIMUM DURATION FOR T |
0.8s |
| MINIMUM DURATION FOR T |
100µs |
| ABSOLUTE ERROR AS A % |
3.10-4/T |
| SENSITIVITY |
see sensitivity in frequency measurement mode |
| ABSOLUTE ADDITIONAL ERROR |
0.1 x C/P, with C: V range (C=5000V for 1000VDC or 750VAC ranges, and with P: slope in V/s |
| Measurement Rate |
| Digital Display |
2 measurements/s |
| Bargraph |
20 measurements/s |
| General Specifications |
| Power Supply |
9V alkaline battery (6LF22) |
| Battery Life |
The typical life of 500 hours in VDC mode |
| Mechanical Dimensions |
7.4 x 3.2 x 1.6" (189 X 82 X 40 mm) |
| Packing Dimensions |
9.1 x 6.1 x 2.6" (230 X 155 X 65mm) |
| Weight |
.9 lbs (400g) |
| Packaging Weight |
500g |
| Environmental Specification |
| Environment |
Indoor use |
| Altitude |
<2000m |
| Reference Temperature |
18°C to 28°C |
| Humidity |
| RANGE |
0 to 40°C (70% max for 5MW/50MW) / 40°C to 50°C / above 50°C |
| RELATIVE HUMIDITY |
0 to 80% / 0 to 70% / 60% |
| Rated Range of Use |
0°C to 50°C |
| Limit Range of Operation |
-10°C to 60°C |
| Storage Temperature Range |
-40°C to 70°C |
| Temperature Coefficient |
max 0.1 x accuracy /°K |
| Casing and Circuit |
self-extinguishing materials |
| Operating Quality |
IEC 359 |
| Safety Reference Specifications |
| Electrical Safety (per brochure) |
IEC 1010-1 |
| Electromagnetic Compatibility |
NF EN 61326-1 |
| Display |
Liquid crystal display comprising: a 50,000 count display + sign(digits 14mm high), a 34 bar analog bar graph display, appropriate units for each type of measurement |
