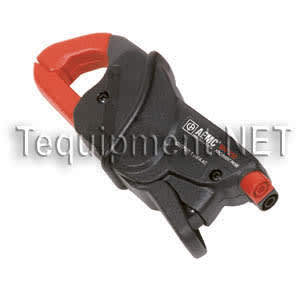

| AEMC 2115.83 Specifications |
| Operating Range |
| Current Range |
0.5 to 200A |
| Frequency Range |
40 to 10kHz |
| Limit Operating Conditions |
200A permanently to 1kHz; Derating above 3kHz: 200A x (1/0.333 F), F in kHz |
| Common Mode Voltage |
600VAC |
| Crest Factor |
3 @ 200Arms with an error (due to CF) of 4% |
| Current Overload |
240A for 10 min |
| Reference Conditions |
20° to 26°C, 20 to 75% RH, 48 to 65Hz, external magnetic field <40A/m, 48 to 65Hz sine wave, distortion factor less than 1%, no DC component, no external current carrying conductor, test sample centered. Load impedance 1MW |
| Working Voltage |
600VAC |
| Influence of Adjacent Conductor |
| Range Value |
50Hz |
| Influence of Adjacent Conductor |
< 15mA/A |
| Influence of Conductor Position |
| Influence of Conductor Position |
0.5% of Reading @ 50/60Hz |
| Influence of Humidity |
| Influence of Humidity |
14 - 90% RH: £0.2% of mV output per 10°K @ 18°C to 28°C |
| Output Signal |
| Output Signal |
100mV DC/AAC |
| Mechanical Specifications |
| Altitude |
Operating: 0 to 2000m; Non-operating: 0 to 12km |
| Colors |
Dark gray handles with red cover |
| Dimensions |
5.47 x 2.00 x 1.18" (139 x 51 x 30mm) |
| Drop Test |
Test per IEC 68-2-32: 1.0 m drop on 38 mm of Oak on concrete |
| Jaw Opening |
.84" (21mm) |
| Material |
Jaws: Polycarbonate with 10% fiberglass charge, Red UL 94 V0; Case: Polycarbonate |
| Maximum Bus Bar Size |
0.78 x 0.19" (20 x 5mm) |
| Maximum Cable Diameter |
One 0.78"Ø (20mm) |
| Mechanical Shock |
100g per IEC 68-2-27 |
| Operating Temperature |
14° to 131°F (-10° to 55°C) |
| Operating Relative Humidity |
10° to 35°C 85% RH (without roll-off above 35°C) |
| Output |
Two standard safety banana jacks (4mm) |
| Protection Index (IP) |
IP 40 (IEC 529) |
| Impact Test |
IK04 0.5 J EN50102 |
| Storage Temperature |
-40° to 158°F (-40° to 70°C) |
| Vibration |
Test per IEC 68-2-6 |
| Weight |
6.5 oz (180g) |
| External Influences |
| Influence of Temperature |
£150 ppm/°K, or 0.15% of mV output per 10K° |
| Safety Reference Specifications |
| Safety Ratings |
EN 61010-2-32 |
| Agency Approvals |
CE Mark |
