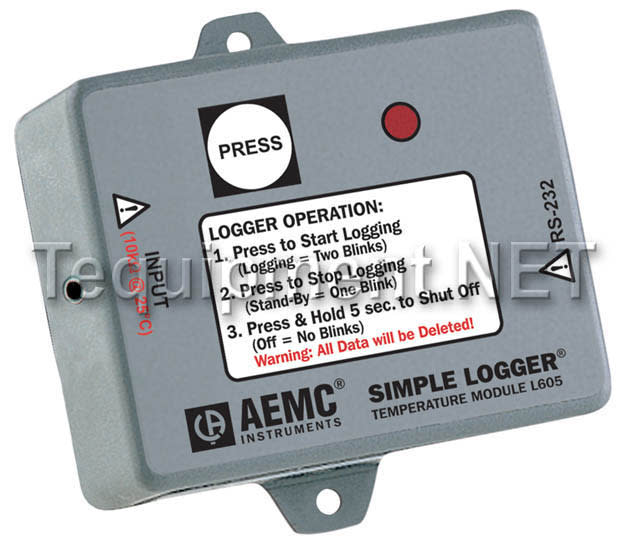

AEMC 2114.17 - Simple Logger Model L605

The Simple Logger Thermistor Logger Model L605 is a single channel, low-cost data logger that requires no user setup. It is directly compatible with industry standard 10kW thermistor probes. The Model L605 has both an internal and external thermistor with a measurement range of -4° to +212°F (-20 to 100°C).

Simple Logger Software Features

• Very easy to set up and use - no programming required
• Statistics appear on the screen: Max, Min, Avg, Date, and Time
• On-Line display of data logger values
• Zoom capability with an automatic statistics update
• User keyed text annotations
• Automatically displays values at the cursor position
• Export data to spreadsheet and database software
• Print both graphs and tabular listings
• Paste graphs into other applications
• Programmable scale and units for all DC loggers. Automatic selection for AC loggers
• User-programmable High and Low limits (Model L215)
• User-programmable record modes - inside or outside of limits (Model L215)
• Automatic baud rate selection (version 6.0 or later)

Computer Requirements

• 486 or higher
• 8MB of RAM
• Windows ® 95/98/2000/ME/XP or Windows ® NT
• 1 serial port not in use by any other device
• 8MB hard drive space for program and 400kB max per file stored
