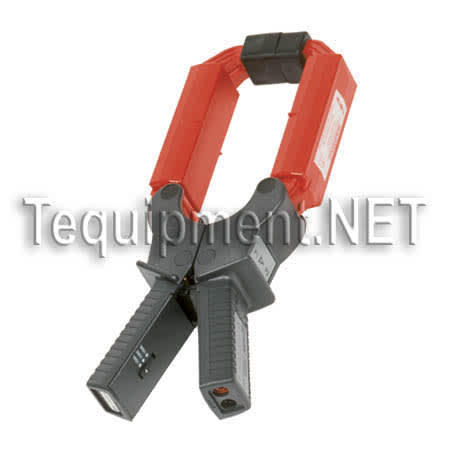

| AEMC 2110.85 Specifications |
| Operating Range |
| Current Range |
1 to 500A AC / 1 to 1000AAC / 1 to 1500A |
| Frequency Range |
30 to 1500Hz; current derating above, 1500Hz for continuous use |
| Common Mode Voltage |
600VAC |
| Current Overload |
1800A for 10 min |
| Current Overload |
| Range Value |
500A / 1000A / 1500A |
| Overload |
700A for 10 min / 1400A for 10 min / 1800A for 10 min |
| Load Impedance |
£5W |
| Load Impedance |
| Range Value |
500A / 1000A / 1500A |
| Load Impedance |
5W |
| Open Secondary Voltage |
<42V by limiting circuit |
| Reference Conditions |
23°C ±3°K, 20 to 85% RH, 48 to 65Hz, external magnetic field <40A/m, no DC component, no external current carrying conductor, test sample centered. Load impedance 5W |
| Amperes |
| Range Value |
500A / 1000A / 1500A |
| Ampere Second Product |
6A.s / 30A.s / 65A.s |
| Working Voltage |
600VAC |
| Influence of Adjacent Conductor |
| Influence of Adjacent Conductor |
< 5A / AAC |
| Influence of Conductor Position |
| Range Value |
500:1 / 1000:1 / 1500:1 |
| Influence of Conductor Position |
1.5% ± 0.2A of Reading @ 50/60Hz, 1% ± 0.2A of Reading @ 50/60Hz |
| Output Signal |
| Range Value |
1 to 500AAC continuous cycle / 1 to 1000AAC continuous cycle / 1 to 1500A continuous cycle |
| Output Signal |
2mAAC / AAC (1A at 500A), 1mAAC / AAC (1A at 1000A), 0.66mAAC / AAC (1A at 1500A) |
| Accuracy |
| Range |
500A / 1000A / 1500A |
| Current Range |
1 to 500A AC continuous cycle / 1 to 1000A AC continuous cycle / 1 to 1500A continuous cycle |
| Ratio |
500:1 / 1000:1 / 1500:1 |
| Accuracy |
Per IEC 185-26-27 |
| Mechanical Specifications |
| Colors |
Dark gray handles with red jaws |
| Dimensions |
4.72 x 12.40 x 1.89" (120 x 315 x 48mm) |
| Drop Test |
500mm (IEC 68-2-32) |
| Jaw Opening |
3.54" (90mm) |
| Material |
Handles: 10% Fiberglass charged polycarbonate UL 94 V0; Jaws: ABS UL 94 V2 |
| Maximum Bus Bar Size |
1.97 x 5.31" (50 x 135mm), 2.52 x 3.94" (64 x 100mm) |
| Maximum Cable Diameter |
2.52" Ø max. 64mm |
| Mechanical Shock |
100g (IEC 68-2-27) |
| Operating Temperature |
14° to 122°F (-10° to 50°C) |
| Output |
Two standard safety banana jacks (4mm) |
| Protection Index (IP) |
IP 20 (IEC 529) |
| Storage Temperature |
-13° to 176°F (-25° to 80°C) |
| Vibration |
Test per IEC 68-2-6 |
| Weight |
2.65 lbs (1200g) |
| External Influences |
| Influence of Temperature |
<0.1% per 10K° |
| Safety Reference Specifications |
| Safety Ratings |
EN 61010-2-32 |
