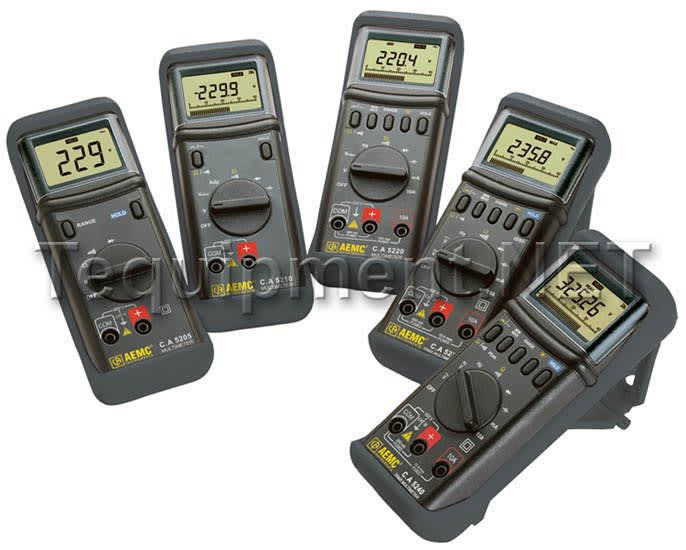

AEMC 2116.77 Specifications |
AC DC Voltage |
AC/DC VOLTAGE |
5 ranges: 400mV to 600V |
RANGE |
400mV / 4V / 40V / 400V / 600V (Not accessible) |
ACCURACY |
Not accessible / ±1.5% Reading ±10cts / ±2% Reading ±20cts |
IMPEDANCE |
3MW / 2.3MW |
RESOLUTION |
10µV / 100µV / 1mV / 10mV / 100mV |
BARGRAPH RESOLUTION |
1mV / 10mV / 100mV / 1V / 10V |
PERMITTED OVERLOAD |
600V eff. and 900V peak |
AC Voltage |
RANGE |
400mV / 4V / 40V / 400V / 600V (Not accessible) |
ACCURACY |
±1.2% Reading ±20cts / ±1.5% Reading ±20cts |
INPUT IMPEDANCE |
3MW / ??? / 2.3MW |
RESOLUTION |
10µV / 100µV / 1mV / 10mV / 100mV |
BARGRAPH RESOLUTION |
1mV / 10mV / 100mV / 1V / 10V |
PERMITTED OVERLOAD |
600V eff. and 900V peak |
AC Current |
RANGE |
40mA / 400mA / 10A |
FREQUENCY RANGE |
40Hz to 1000Hz |
ACCURACY |
±0.9% Reading ±10cts / ±1.5% Reading ±5cts |
PROTECTION |
Fuse 0.5A HBC / Fuse 12A HBC |
PERMITTED OVERLOADS |
600mA for 30 seconds / 10A for 30 seconds |
RESOLUTION |
1µA / 10µA / 1mA |
VOLTAGE DROP (at the terminals) |
200mV / 1V / 400mV |
BARGRAPH RESOLUTION |
0.1mA / 1mA / 100mA |
DC Voltage |
RANGE |
400mV / 4V / 40V / 400V / 600V (Not accessible) |
ACCURACY |
±0.15% Reading ±10cts / ±0.1% Reading ±3cts |
INPUT IMPEDANCE |
3MW / ??? / 2.3MW / 2.3MW |
RESOLUTION |
10µV / 100µV / 1mV / 10mV / 100mV |
BARGRAPH RESOLUTION |
1mV / 10mV / 100mV / 1V / 10V |
PERMITTED OVERLOAD |
600V eff. and 900V peak |
DC Current |
RANGE |
40mA / 400mA / 10A |
ACCURACY |
±0.5% Reading ±5cts / ±1.5% Reading ±10cts |
PROTECTION |
Fuse 0.5A HBC / Fuse 12A HBC |
PERMITTED OVERLOADS |
600mA for 30 seconds / 10A for 30 seconds |
RESOLUTION |
1µA / 10µA / 1mA |
VOLTAGE DROP (at the terminals) |
200mV / 1V / 400mV |
BARGRAPH RESOLUTION |
0.1mA / 1mA / 100mA |
Basic Accuracy |
0.1% |
Voltage Frequency |
0 to 60Hz |
Impedance |
10MW |
AC/DC Current |
3 ranges: 40mA to 10A |
Current Frequency |
0 to 60Hz |
Resistance |
Resistance |
6 ranges: 400W to 40MW |
RANGE |
400W / 4kW / 40kW / 400kW / 4MW / 40MW |
ACCURACY |
±0.3% Reading ±10cts / ±0.2% Reading ±3cts / ±0.2% Reading ±6cts / ±1% Reading ±10cts |
PROTECTION |
500VRMS and 750V peak |
RESOLUTION |
0.1W / 1W / 10W / 100W / 1kW / 10kW |
BARGRAPH RESOLUTION |
10W / 100W / 1kW / 10kW / 100kW / 1MW |
VOLTAGE ON THE OPEN CIRCUIT |
<1.2V / <2.5VDC |
Continuity Beeper |
Continuity Beeper |
R < 40W |
CONTINUITY BEEPER |
On the 400W range, continuos beep for a resistance R£40W |
RESPONSE TIME |
100ms |
PROTECTION |
500VRMS and 750V peak |
Diode Test |
Diode Test |
measurement of the voltage in forward direction (resolution 1mV) |
RESOLUTION |
1mV |
ACCURACY |
±1% L ±10cts |
OPEN CIRCUIT VOLTAGE |
<3VDC |
SHORT CIRCUIT CURRENT |
0.8mA |
COMMENT |
in reverse direction the display indicates the open circuit voltage, around 4V |
Capacitance |
Capacitance |
5 ranges: 4nF to 40mF |
CAPACITANCE METER FUNCTION |
4nF / 40nF / 400nF / 4µF / 40µF (For a capacitance C>20µF, the accuracy is ±3.5% Reading ± 10 counts) |
ACCURACY |
±3% Reading ±20cts / ±1.5% Reading ±5cts / ±2% Reading ±5cts |
PROTECTION |
500VRMS and 750V peak |
RESOLUTION |
1pF / 10pF / 100pF / 1nF / 10nF |
Frequency |
Frequency |
6 ranges: 100Hz to 2MHz |
ACCURACY ±0.1% Reading ±10cts / ±0.1% Reading ±4cts / ±0.1% Reading ±10cts |
ACCURACY ±0.1% Reading ±10cts / ±0.1% Reading ±4cts / ±0.1% Reading ±10cts |
RANGE |
100Hz / 1kHz / 10kHz / 100kHz / 400kHz |
TRIGGER THRESHOLD |
500mV / 1.5V |
RESOLUTION |
0.01Hz / 0.1Hz / 1Hz / 10Hz / 100Hz |
PERMITTED OVERLOAD |
500VRMS and 750V peak |
OPERATING RANGE |
The RANGE button selects the trigger level: 10m / 500V |
Min/Max |
over 500ms |
Peak |
over 1ms |
Range Selection |
automatic and manual range |
Measurement Rate |
AC/DC VOLTAGE |
1 |
AC/DC CURRENT |
1 |
RESISTANCE |
1 |
CONTINUITY AUDIBLE TEST |
1 |
DIODE TEST |
1 |
CAPACITANCE |
1 |
FREQUENCY |
1 |
MIN/MAX VALUE |
1 |
PEAK VALUE |
1 |
HOLD DISPLAY |
1 |
BACKLIGHT |
1 |
General Specifications |
Power Off |
automatic (30 min) or manual |
Power Supply |
1 battery 9V (6LF22) |
Battery Life |
400 hours |
Buzzer |
Continuous beep for the continuity test, Intermittent beep each time the switch or buttons are pressed, and for the overload indication |
Mechanical Dimensions |
7.0 x 2.5 x 1.7" (177 x 64 x 42 mm) |
Weight |
0.7 lbs (350 g) |
Environmental Specification |
ENVIRONMENT |
Use / Storage |
TEMPERATURE |
0°C to +50°C / -20°C to +60°C |
RELATIVE HUMIDITY |
£70%RH / £80%RH |
ALTITUDE |
<2000m |
Safety Reference Specifications |
CE Mark |
CE MARK |
Electrical Safety (per brochure) |
IEC 1010, 1600V CAT III |
Protection (per brochure) |
Electronic and HBC fuses 0.5A & 12A |
Protection Index (per brochure) |
IP40 |
Electrical Safety (per manual) |
Double Insulation |
Degree of pollution |
2 |
Installation category |
III |
Assigned voltage |
600VRMS |
Electromagnetic Compatiility |
Emission (EN 50081-1) / Immunity (EN 50082-1) |
Mechanical Protection (per manual) |
Degree of watertightness (IEC 529): protection index IP 40 |
