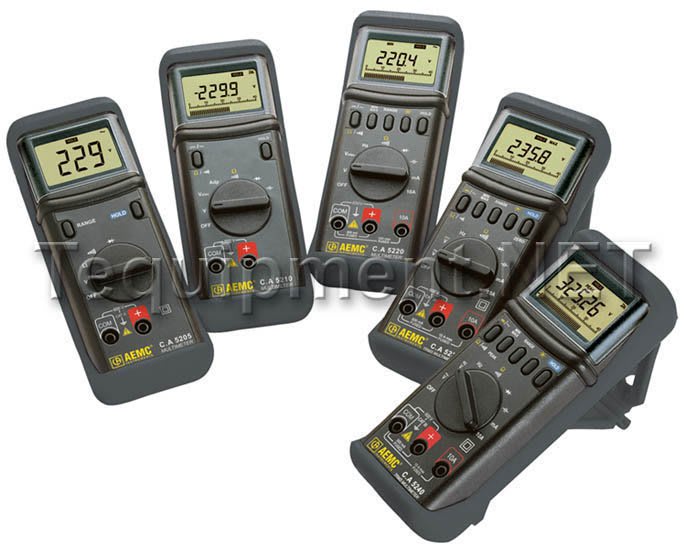

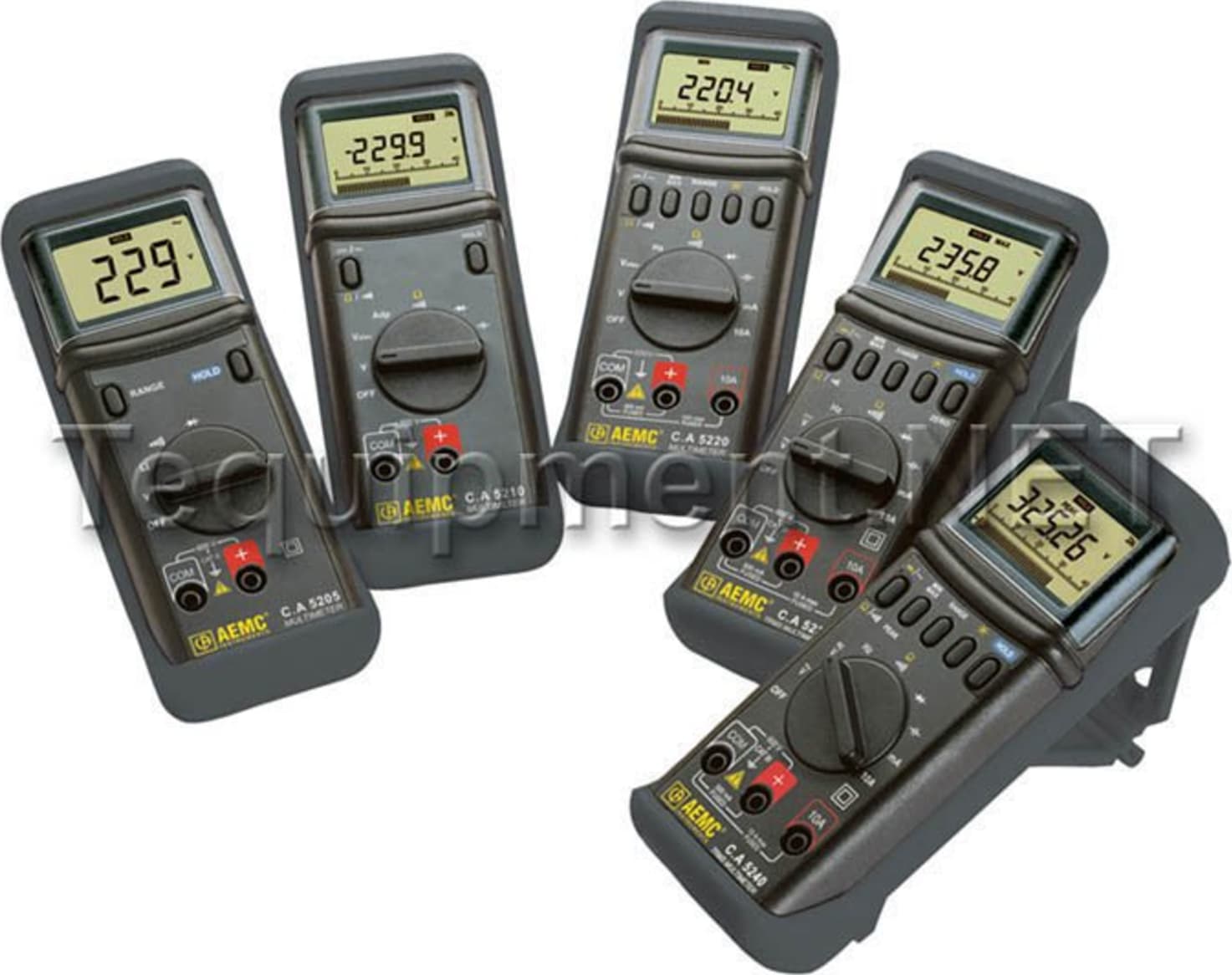

| AEMC 2116.76 Specifications |
| AC Voltage |
| AC/DC VOLTAGE |
5 ranges: 400mV to 600V |
| RANGE |
400mV (Accessible by the RANGE button. Minimum measurement: 20mV) / 4V 40V / 400V / 600V (Crest factor FC £3) |
| ACCURACY |
±1.5% Reading ±5cts / ±1% Reading ±3cts |
| V DC IMPEDANCE |
100MW / 10MW / 9.1MW |
| RESOLUTION |
0.1mV / 1mV / 10mV / 100mV / 1V |
| BARGRAPH RESOLUTION |
100mV / 1V / 10V / 100V |
| PERMITTED OVERLOAD |
600VRMS and 1000V peak |
| AC Current |
| RANGE |
40mA / 400mA / 10A (Crest fcator FC £3) |
| FREQUENCY RANGE |
40Hz to 1000Hz |
| ACCURACY |
±1.2% Reading ±4cts / ±1.5% Reading ±5cts |
| PROTECTION |
Fuse 0.5A HBC |
| PERMITTED OVERLOADS |
12A for 30 seconds |
| RESOLUTION |
10µA / 100µA / 10mA |
| VOLTAGE DROP (at the terminals) |
450mV / 650mV / 400mV |
| BARGRAPH RESOLUTION |
1mA / 10mA / 1A |
| DC Voltage |
| RANGE |
400mV (Accessible by the RANGE button. Minimum measurement: 20mV) / 4V 40V / 400V / 600V (Crest factor FC £3) |
| ACCURACY |
±0.25% Reading ±1ct |
| V DC IMPEDANCE |
100MW / 10MW / 9.1MW |
| RESOLUTION |
0.1mV / 1mV / 10mV / 100mV / 1V |
| BARGRAPH RESOLUTION |
100mV / 1V / 10V / 100V |
| PERMITTED OVERLOAD |
600VRMS and 1000V peak |
| DC Current |
| RANGE |
40mA / 400mA / 10A (Crest fcator FC £3) |
| ACCURACY |
±0.8% Reading ±2cts / ±1.2% Reading ±4cts |
| PROTECTION |
Fuse 0.5A HBC |
| RESOLUTION |
10µA / 100µA / 10mA |
| VOLTAGE DROP (at the terminals) |
450mV / 650mV / 400mV |
| BARGRAPH RESOLUTION |
1mA / 10mA / 1A |
| BASIC ACCURACY |
0.25% |
| VOLTAGE FREQUENCY |
0 to 60Hz |
| IMPEDENCE |
10MW |
| AC/DC CURRENT |
3 ranges: 40mA to 10A |
| CURRENT FREQUENCY |
0 to 60Hz |
| Resistance |
| RESISTANCE |
6 ranges: 400W to 40MW |
| RANGE |
400W / 4kW / 40kW / 400kW / 4MW / 40MW |
| ACCURACY |
±1% Reading ±4cts / ±0.5% Reading ±3cts / ±1% Reading ±4cts / ±1.5% Reading ±4cts |
| PROTECTION |
500VRMS and 750V peak |
| RESOLUTION |
0.1W / 1W / 10W / 100W / 1kW / 10kW |
| BARGRAPH RESOLUTION |
10W / 100W / 1kW / 10kW / 100kW / 1MW |
| VOLTAGE ON THE OPEN CIRCUIT |
£0.4V DC |
| Continuity Beeper |
| CONTINUITY BEEPER |
R < 40W |
| CONTINUITY BEEPER |
On the 400W range, continuos beep for a resistance R£40W |
| RESPONSE TIME |
100ms |
| Diode Test |
| DIODE TEST |
measurement of the voltage in forward direction (resolution 1mV) |
| RESOLUTION |
1mV |
| ACCURACY |
±1% Reading ±2cts |
| OPEN CIRCUIT VOLTAGE |
3.2V typical |
| SHORT CIRCUIT CURRENT |
0.6mA |
| COMMENT |
in reverse direction the display indicates the open circuit voltage, around 4V |
| Capacitance |
| CAPACITANCE |
5 ranges: 4nF to 40mF |
| CAPACITANCE METER FUNCTION |
4nF / 40nF / 400nF / 4mF / 40mF (For a capacitance C>20mF, the accuracy is ±5% Reading ± 8 counts) |
| ACCURACY |
±1.5% Reading ±40cts / ±1.5% Reading ±4cts |
| PROTECTION |
500VRMS and 750V peak |
| RESOLUTION |
1pF / 10pF / 100pF / 1nF / 10nF |
| Frequency |
| FREQUENCY |
5 ranges: 100Hz to 400kHz |
| ACCURACY |
±0.1% Reading ±10cts / ±0.1% Reading ±4cts / ±0.1% Reading ±8cts / ±0.1% Reading ±20cts |
| RANGE |
100Hz / 1kHz / 10kHz / 100kHz (Note: If the frequency applied is 99.99kHz, the decimal point oscillates between .999kHz and 99.99kHz) 400kHz |
| RESOLUTION |
0.01Hz / 0.1Hz / 1Hz / 10Hz / 100Hz |
| PERMITTED OVERLOAD |
500VRMS and 900V peak |
| OPERATING RANGE |
The RANGE button selects the trigger level: 10m / 4V to 600V |
| MIN/MAX |
over 500ms |
| RANGE SELECTION |
automatic and manual range |
| Measurement Rate |
| AC/DC VOLTAGE |
1 |
| AC/DC CURRENT |
1 |
| RESISTANCE |
1 |
| CONTINUITY AUDIBLE TEST |
1 |
| DIODE TEST |
1 |
| CAPACITANCE |
1 |
| FREQUENCY |
1 |
| MIN/MAX VALUE |
1 |
| HOLD DISPLAY |
1 |
| BACKLIGHT |
1 |
| General Specifications |
| POWER OFF |
automatic (30 min) or manual |
| POWER SUPPLY |
1 battery 9V (6LF22) |
| BATTERY LIFE |
500 hours |
| BUZZER |
Continuous beep for the continuity test, Intermittent beep each time the switch or buttons are pressed, and for the overload indication |
| MECHANICAL DIMENSIONS |
7.0 x 2.5 x 1.7" (177 x 64 x 42 mm) |
| WEIGHT |
0.7 lbs (350 g) |
| Environmental Specification |
| ENVIRONMENT |
Use / Storage |
| TEMPERATURE |
0°C to +50°C / -20°C to +60°C |
| RELATIVE HUMIDITY |
£70%RH / £90%RH (up to 45°C) |
| ALTITUDE |
<2000m |
| Safety Reference Specifications |
| CE Mark |
CE MARK |
| Electrical Safety (per brochure) |
IEC 1010, 1600V CAT III |
| Protection (per brochure) |
Electronic and HBC fuses 0.5A & 12A |
| Protection Index (per brochure) |
IP40 |
| Electrical Safety (per manual) |
Double Insulation |
| Degree of pollution |
2 |
| Installation category |
III |
| Assigned voltage |
600VRMS |
| Electromagnetic Compatiility |
Emission (EN 50081-1) / Immunity (EN 50082-1) |
| Mechanical Protection (per manual) |
Degree of watertightness (IEC 529): protection index IP 40 |
| Note |
This multimeter of overvoltage category III satisfies the severe requirements of reliability and availability corresponding to industrial and domestic permanent installations (IEC 664-1) |
