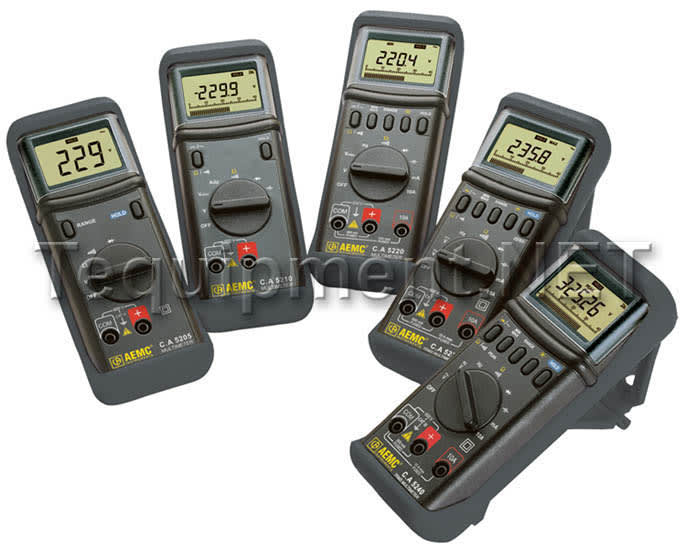

| AEMC 2116.75 Specifications |
| Electrical Specifications |
| AC/DC Voltage |
5 ranges: 400mV to 600V |
| AC Voltage |
| RANGE |
400mV (minimum measurement=40mV) / 4V / 40V / 400V / 600V (4000 count display limited to 600V) |
| ACCURACY |
±5% Reading / ±1.5% Reading ±1ct |
| V DC IMPEDANCE |
10MW |
| V ELEC IMPEDANCE |
270kW |
| RESOLUTION |
0.1mV / 1mV / 10mV / 100mV / 1V |
| BARGRAPH RESOLUTION |
100mV / 1V / 10V / 100V |
| PERMITTED OVERLOAD |
600VRMS and 900V peak |
| FREQUENCY |
40 to 100Hz / 40 to 500Hz |
| AC Current |
| RANGE |
40mA / 400mA / 10A (4000 count display limited to 10A between 5A and 10A; limit operating time to 10 minutes to avoid overheating) |
| FREQUENCY RANGE |
40Hz to 500Hz |
| ACCURACY |
±1.5% Reading ±1ct / ±2% Reading ±2cts |
| PROTECTION |
Fuse 0.4A HBC / Fuse 12A HBC |
| PERMITTED OVERLOADS |
600mA for 30 seconds / 15A for 30 seconds |
| RESOLUTION |
10µA / 100µA / 10mA |
| VOLTAGE DROP (at the terminals) |
600mV / 4.5V / 600mV |
| BARGRAPH RESOLUTION |
1mA / 10mA / 1A |
| DC Voltage |
| RANGE |
400mV /4V / 40V / 400V / 600V (4000 count display limited to 600V) |
| ACCURACY |
±1% Reading ±1ct |
| V DC IMPEDANCE |
10MW |
| V ELEC IMPEDANCE |
270kW |
| RESOLUTION |
0.1mV / 1mV / 10mV / 100mV / 1V |
| BARGRAPH RESOLUTION |
100mV / 1V / 10V / 100V |
| PERMITTED OVERLOAD |
600VRMS and 900V peak |
| DC Current |
| RANGE |
40mA / 400mA / 10A (4000 count display limited to 10A between 5A and 10A; limit operating time to 10 minutes to avoid overheating) |
| ACCURACY |
±1.5% Reading ±1ct / ±1.5% Reading ±2cts |
| PROTECTION |
Fuse 0.4A HBC / Fuse 12A HBC |
| PERMITTED OVERLOADS |
600mA for 30 seconds / 15A for 30 seconds |
| RESOLUTION |
10µA / 100µA / 10mA |
| VOLTAGE DROP (at the terminals) |
600mV / 4.5V / 600mV |
| BARGRAPH RESOLUTION |
1mA / 10mA / 1A |
| BASIC ACCURACY |
1% |
| VOLTAGE FREQUENCY |
0 to 60Hz |
| IMPEDENCE |
10MW; (on position V elec: base impedance 270kW) |
| AC/DC CURRENT |
3 ranges: 40mA to 10A |
| CURRENT FREQUENCY |
0 to 60Hz |
| Resistance |
| RESISTANCE |
6 ranges: 400W to 40MW |
| RANGE |
40MW / 400W / 4kW / 40kW / 400kW / 4MW |
| ACCURACY |
±3% Reading ±5cts / ±1.5% Reading ±8cts / ±1.5% Reading ±3cts |
| PROTECTION |
500VRMS and 750V peak |
| RESOLUTION |
10kW / 0.1W / 1W / 10W / 100W / 1kW |
| BARGRAPH RESOLUTION |
1MW / 10W / 100W / 1kW / 10kW / 100kW |
| VOLTAGE ON THE OPEN CIRCUIT |
£0.5V DC |
| Continuity Beeper |
| CONTINUITY BEEPER |
R < 40W |
| CONTINUITY BEEPER |
On the 400W range, continuos beep for a resistance R£40W |
| Diode Test |
| DIODE TEST |
measurement of the voltage in forward direction (resolution 1mV) |
| RESOLUTION |
1mV |
| ACCURACY |
±2% Reading ±15mV |
| OPEN CIRCUIT VOLTAGE |
³3V |
| SHORT CIRCUIT CURRENT |
0.8mA |
| COMMENT |
in reverse direction the display indicates the open circuit voltage, around 3V |
| Capacitance |
| CAPACITANCE |
5 ranges: 4nF to 40mF |
| CAPACITANCE METER FUNCTION |
4nF (Min measurement: 400pF) / 40nF / 400nF / 4mF / 40mF |
| ACCURACY |
±3% Reading ±400cts / ±3% Reading ±25cts / ±5% Reading ±10cts / ±15% Reading ±10cts |
| PROTECTION |
500VRMS and 750V peak |
| RESOLUTION |
1pF / 10pF / 100pF / 1nF / 10nF |
| Frequency |
| FREQUENCY |
5 ranges: 10Hz to 200kHz |
| ACCURACY |
±0.1% Reading ±2cts |
| RANGE |
100Hz / 1kHz / 10kHz / 100kHz / 400kHz |
| RESOLUTION |
0.01Hz / 0.1Hz / 1Hz / 10Hz / 100Hz |
| PERMITTED OVERLOAD |
500VRMS and 900V peak |
| OPERATING RANGE |
The RANGE button selects the trigger level: 10m /4V to 600V |
| Min/Max |
over 500ms |
| Range Selection |
automatic and manual range |
| Measurement Rate |
| AC/DC VOLTAGE |
1 |
| AC/DC CURRENT |
1 |
| RESISTANCE |
1 |
| CONTINUITY AUDIBLE TEST |
1 |
| DIODE TEST |
1 |
| CAPACITANCE |
1 |
| FREQUENCY |
1 |
| MIN/MAX VALUE |
1 |
| HOLD DISPLAY |
1 |
| BACKLIGHT |
1 |
| General Specifications |
| Power Off |
automatic (30 min) or manual |
| Power Supply |
2 "AA" batteries 1.5V (LR6) |
| Battery Life |
400 hours |
| Buzzer |
Continuous beep for the continuity test, Intermittent beep each time the switch or buttons are pressed, and for the overload indication |
| MECHANICAL DIMENSIONS |
7.0 x 2.5 x 1.7" (177 x 64 x 42 mm) |
| WEIGHT |
0.7 lbs (350 g) |
| Environmental Specification |
| ENVIRONMENT |
Use / Storage |
| TEMPERATURE |
0°C to +50°C / -20°C to +60°C |
| RELATIVE HUMIDITY |
£80%RH / £90%RH (up to 45°C) |
| Safety Reference Specifications |
| CE Mark |
CE MARK |
| Electrical Safety (per brochure) |
IEC 1010, 1600V CAT III |
| Protection (per brochure) |
Electronic and HBC fuses 0.4A & 12A |
| Protection Index (per brochure) |
IP40 |
| Electrical Safety (per manual) |
Double Insulation |
| Degree of pollution |
2 |
| Installation category |
III |
| Electromagnetic Compatibility |
Emission (EN 50081-1) / Immunity (EN 50082-1) |
| Mechanical Protection (per manual) |
Degree of water tightness (IEC 529): protection index IP 50 |
| Note |
This multimeter of overvoltage category III satisfies the severe requirements of reliability and availability corresponding to industrial and domestic permanent installations (IEC 664-1) |
