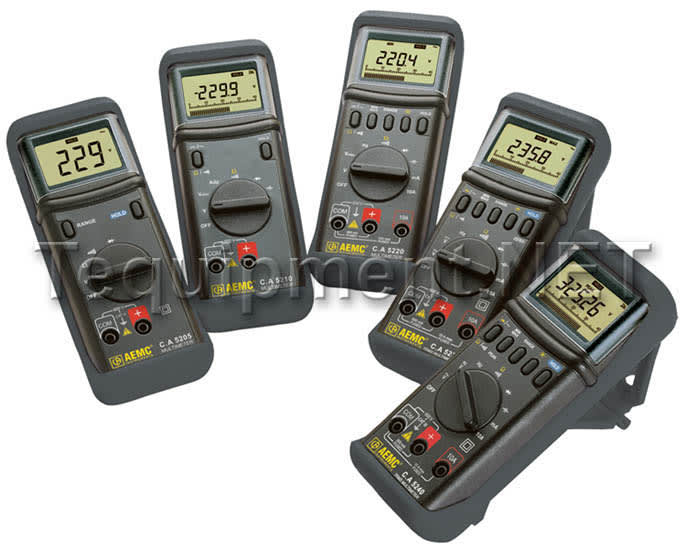

| AEMC 2116.73 Specifications |
| Electrical Specifications |
| AC/DC Voltage |
5 ranges: 200mV to 600V |
| AC Voltage |
| RANGE |
200mV /2V / 20V / 200V / 600V |
| ACCURACY |
±1% Reading ±5 counts |
| INPUT IMPEDANCE |
3MW |
| RESOLUTION |
0.1mV / 1mV / 10mV / 100mV / 1V |
| PERMITTED OVERLOAD |
600VRMS and 900V peak |
| FREQUENCY |
40 to 500Hz |
| MINIMUM THRESHOLD V AC |
25mV from 40 to 100Hz and 300mV from 100 to 500Hz |
| DC Voltage |
| RANGE |
200mV / 2V / 20V / 200V / 600V |
| ACCURACY |
±1% Reading ±1ct |
| INPUT IMPEDANCE |
3MW |
| RESOLUTION |
0.1mV / 1mV / 10mV / 100mV / 1V |
| PERMITTED OVERLOAD |
600VRMS and 900V peak |
| FREQUENCY |
40 to 500Hz |
| MINIMUM THRESHOLD V DC |
10mV |
| Basic Accuracy |
1% |
| Voltage Frequency |
0 to 60Hz |
| Impedance |
3MW |
| Resistance |
6 ranges: 200W to 20MW |
| Resistance |
| RANGE |
200W / 2kW / 20kW / 200kW / 2MW / 20MW |
| ACCURACY |
±1.5% Reading ±5cts / ±1.5% Reading ±3cts / ±3% Reading ±5cts |
| PROTECTION |
500VRMS and 750V peak |
| RESOLUTION |
0.1W / 1W / 10W / 100W / 1kW / 10kW |
| COMMENTS |
Never test a resistance on a live circuit |
| VOLTAGE ON THE OPEN CIRCUIT |
£0.5V |
| Continuity Beeper |
| CONTINUITY BEEPER |
R < 700W |
| CONTINUITY BEEPER |
Continuous audible beep emitted for a resistance R£40W |
| Diode Test |
| DIODE TEST |
measurement of the voltage in forward direction (resolution 1mV) |
| RESOLUTION |
1mV |
| PROTECTION |
idem Resistances |
| ACCURACY |
±2% Reading ±15mV |
| OPEN CIRCUIT VOLTAGE |
1.5V typical |
| SHORT CIRCUIT CURRENT |
0.4mA |
| COMMENT |
in the reverse direction, the display indicates the open-circuit voltage, around 2V |
| Range Selection |
automatic and manual range |
| Measurement Rate |
| AC/DC VOLTAGE |
1 |
| RESISTANCE |
1 |
| CONTINUITY AUDIBLE TEST |
1 |
| DIODE TEST |
1 |
| HOLD DISPLAY |
1 |
| General Specifications |
| Power Off |
manual |
| Power Supply |
2 "AA" batteries 1.5V (LR6) |
| Battery Life |
500 hours |
| Buzzer |
Continuous beep for the continuity test, Intermittent beep each time the switch or buttons are pressed, and for the overload indication |
| Mechanical Dimensions |
7.0 x 2.5 x 1.7" (177 x 64 x 42 mm) |
| Weight |
0.7 lbs (350 g) |
| Environmental Specification |
| ENVIRONMENT |
Use / Storage |
| TEMPERATURE |
0°C to +50°C / -20°C to +60°C |
| RELATIVE HUMIDITY |
£70%RH / £90%RH (up to 45°C) |
| ALTITUDE |
<2000m |
| Safety Reference Specifications |
| CE Mark |
CE MARK |
| Electrical Safety (per brochure) |
IEC 1010, 1600V CAT III |
| Protection (per brochure) |
Electronic without fuse |
| Protection Index (per brochure) |
IP40 |
| Electrical Safety (per manual) |
Double Insulation |
| Degree of pollution |
2 |
| Installation category |
III |
| Assigned voltage |
600V |
| Electromagnetic Compatibility |
Emission (EN 50081-1), Immunity (EN 50082-1) |
| Mechanical Protection (per manual) |
Degree of water tightness (IEC 529), protection index IP 40 |
| Note |
This multimeter of overvoltage category III satisfies the severe requirements of reliability and availability corresponding to industrial and domestic permanent installations (IEC 664-1) |
