| AEMC 2113.72 Specifications |
| Electrical Specifications |
| Number Of Channels |
1 |
| Measurement Range |
5 to 250Arms, 5 to 2500Arms |
| Input |
5 to 250 or 5 to 2500Arms, Internally Switch Selectable |
| Input Sensor |

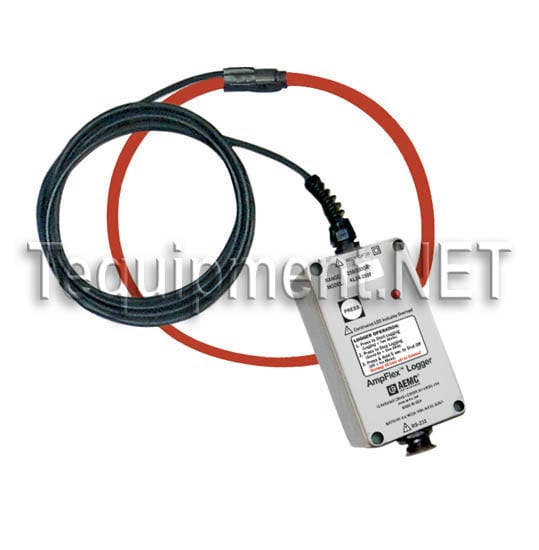

AmpFlex™ 24" Flexible Current Probe |
| Input Connections |
Permanent Flexible Sensor |
| Resolution |
250A range: 1A max, 2500A range: 10A max |
| Resolution |
| Scale Range |
100% / 50% / 25% / 12.5% |
| Max Input |
250Arms / 125Arms / 62.5Arms / 31.25Arms |
| Resolution |
1Arms / 0.5Arms / 0.25Arms / 0.125Arms |
| Accuracy |
1% of Reading + Resolution |
| Sample Rate |
4096/hr maximum |
| Data Storage |
8192 readings |
| Data Storage Technique |
Time Extension Recording™ (TXR™) |
| Power Source |
9V Alkaline battery |
| Battery Life |
Up tp 6 months of recording @ 25° C |
| Output |
RS-232 via DB9 connector |
| Indicators |
Red LED double flashes in LOGGING, single flashes in STANDBY, and is off in OFF mode |
| Controls |
One button is used to start and stop recording sessions and to turn the data logger on and off |
| Select Switch |
Internal range selector slide switch |
| Working Voltage |
600VAC |
| Mechanical Specifications |
| Size |
Sensor: Diameter 0.5" (12.5mm), Logging Module: 1-9/16x2-1/2x4-1/2 (40.64x63.5x114.3) |
| Weight |
15.5oz |
| Max Conductor Size |
24" length: 8" diameter conductor |
| Mounting |
Velcro pads supplied loose |
| Environmental Specification |
| Operating Temperature |
-4° to +158°F (-20° to +70°C) |
| Storage Temperature |
-40° to +174°F (-40° to + 80°C) |
| Relative Humidity |
5 to 95% non-condensing |
| Protection Index |
NEMA4X / IP56 |
| Software Compatibility |
Windows 3.1, Windows 95, Windows 98 |
| Safety Reference Specifications |
| Safety Rating |
EN 61010, 600V, Cat. III |
