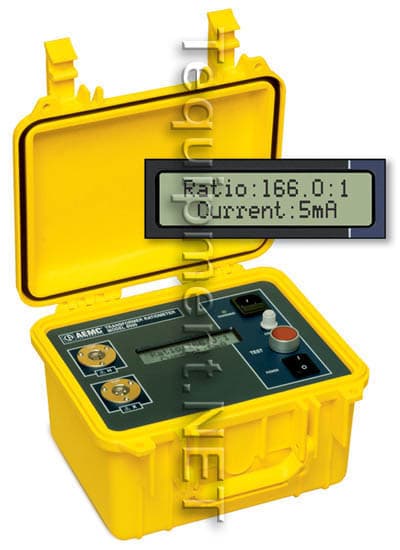

| AEMC 2111.80 Specifications |
| Electrical Specifications |
| Ratio Range |
Autoranging, 0.8000 to 1500.0:1 |
| Accuracy |
Ratio ³ 1000 to 1: ±0.1% of Reading; Ratio > 1000 to 1: ±0.2% of Reading (23°C ±5°C, 50-70% RH, full battery charge, no external fields or noise) |
| Excitation Signal |
PT/VT Mode: 44Vrms maximum; CT Mode: 0-1A Auto Level, 0.1-5Vrms |
| Excitation Current Display |
Range: 0-1000mA; Accuracy: 2% of Reading ±2mA |
| Excitation Frequency |
70Hz |
| Display |
LCD Character, 20x2, large format, LED backlight, day/night visible |
| Measurement Method |
In accordance with ANSI/IEEE C57.12.90 |
| Power Supply |
Dual operation; rechargeable NiCd battery and 115V, 50/60Hz line supply. May be charge from 115V by internal switch at any time |
| Batteries |
12V, 5 x 2 NiCd packs, 1300mAH, Panasonic P-130SCR or equivalent |
| Battery Life |
Up to 10hrs continuous operation - may be used while recharging |
| Charging Time |
14hrs typical, C/10 rate |
| Low Battery Indication |
LCD display |
| Line Fuse |
1.0A, 5 x 20mm, slow acting |
| Display Measurements |
Turns ratio, RMS excitation current, polarity |
| Displayed Messages |
Incorrect lead connections, H/X reversal (accidental step-up misconnection), short (excess excitation current), open circuits, circuit continuity, low battery |
| Mechanical Specifications |
| Connections |
Cannon® XLR connectors and large color-coded industrial clips |
| Leads |
15ft, H & X color-coded, in carrying bag |
| Display |
Dual-line alphanumeric 3.875 x .875" with contrast adjustment and backlight |
| Operating Temperature |
32° to 122°F (0° to 50°C), 0 to 90% RH (without condensation) |
| Case |
Heavy-duty structural polypropylene (yellow) |
| Dimensions |
13 x 12 x 6" (330 x 305 x 152mm) |
| Weight |
14 lbs |
