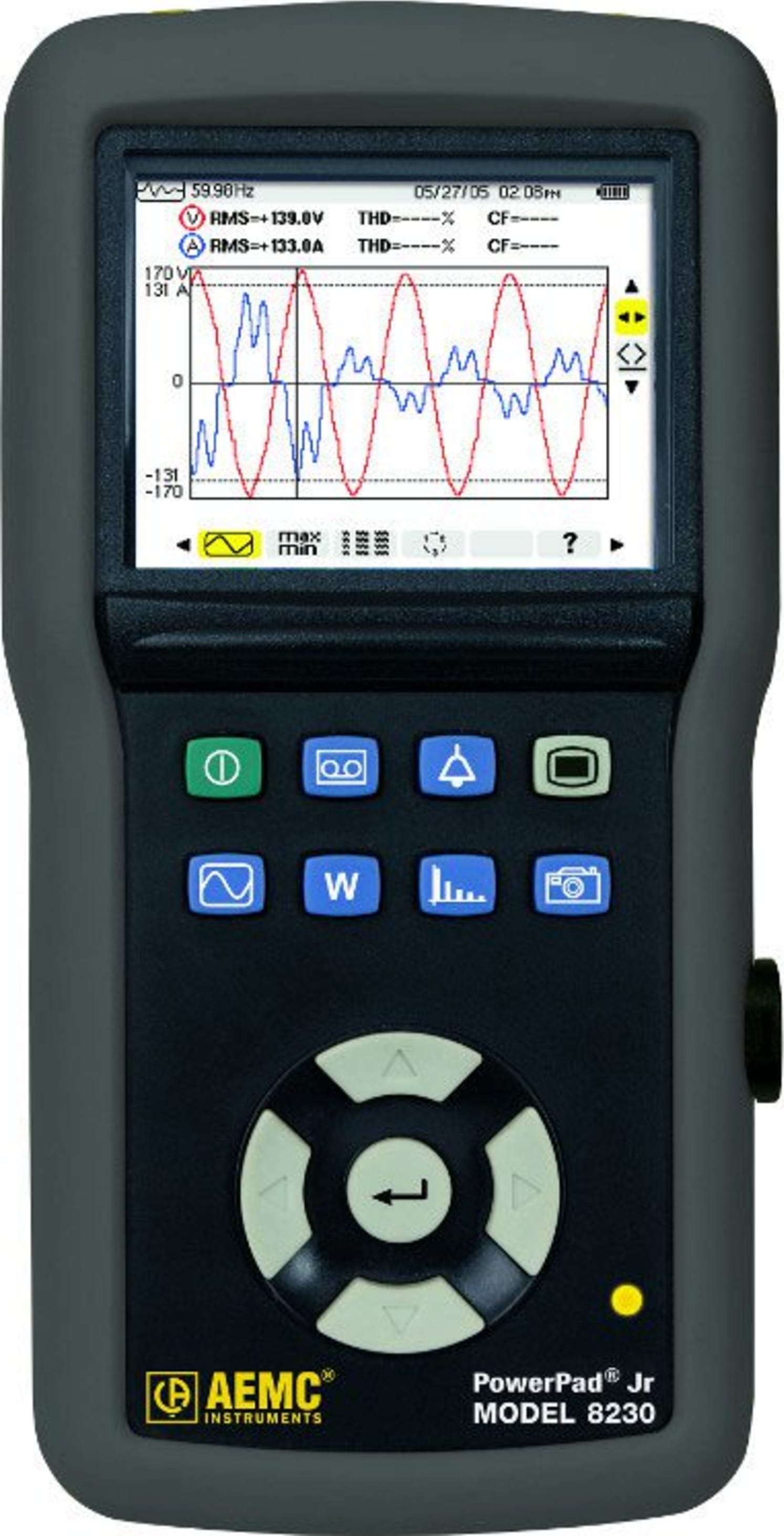

The PowerPad Jr. Model 8230 is a single-phase power quality analyzer that is easy-to-use, compact and shock-resistant. It is intended for technicians and engineers to measure and carry out diagnostic work and power quality work on single- or three-phase balanced load networks. Users are able to obtain instant waveforms of an electrical network’s principal characteristics, and also monitor their variation over a period of time. The multi-tasking measurement system simultaneously handles all the measurement functions and waveform display of the various magnitudes, detection, continuous recordings and their display without any constraints.
Functions of the PowerPad Jr.
- Display and analyze real-time data on your PC
- Configure all PowerPad Jr. functions and parameters from your PC
- Customize views, templates, and reports to your exact needs
- Create and store a complete library of configurations that can be uploaded to the PowerPad Jr. as needed
- Zoom in and out and pan through sections of the graph to analyze the data
- Download, display, and analyze recorded data
- Display waveforms, trend graphs, harmonic spectrums, text summaries, transients, event logs, and stored alarms
- Print reports using standard or custom templates you design
DataView Professional Software (included)
FEATURES:
- Display and analyze data on your PC
- Configure all instrument functions and parameters
- Customize frames, templates, and reports
- Display real-time data
- Download previously recorded data
- Create and store a complete library of configurations
- Factory predefined templates for each type of instrument
- Display waveforms, trend graphs, harmonic spectrums, and text summaries
- Display surge & sag events in high-resolution waveforms and as tabular listings
SYSTEM REQUIREMENTS:
- Windows® 2000/XP/Vista
- 128MB of RAM for Windows® 2000 (256MB recommended)
- 256MB of RAM for Windows® XP
- 512MB of RAM for Windows® Vista
- 80MB of hard disk space (200MB recommended)
- CD-ROM drive
