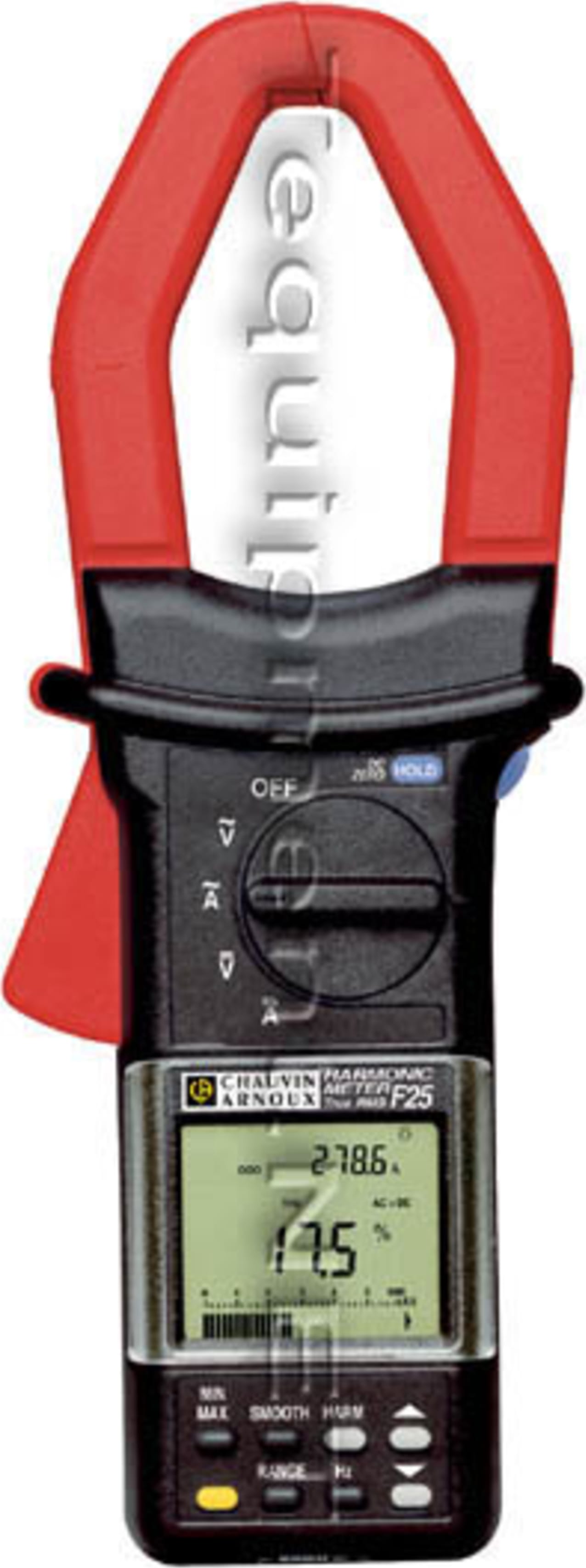

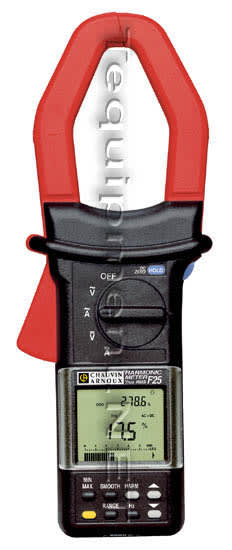

| AEMC 2111.39 Specifications |
| AC Current |
| Input Range |
0.3 to 1000.0Arms, ±0.5 to ±1500.0A peak |
| Range |
0.3 to 59.99A / 60 to 1500A peak |
| Basic Accuracy |
2% of Reading +20cts / 2% of Reading +2cts |
| Crest Factor |
>5 below 300A |
| Frequency Range |
0.5Hz to 5kHz |
| DC Current |
| Input Range |
±0.03 to ±1500A DC; ±0.05 to ±1500A Peak |
| Range |
±0.3 to 59.99A / ±60 to ±1500A |
| Basic Accuracy |
±2% of Reading + 20cts / ±2% of Reading + 2cts |
| AC Volts |
| Input Range |
0.05 to 600Vrms, ±0.05 to ±1500V Peak |
| Range |
0.05 to 59.99V / 60 to 1500V Peak |
| Basic Accuracy |
± 1% of Reading + 10cts / ±1% Reading of + 2cts |
| Input Impedance |
1MW |
| Frequency Range |
0.5Hz to 5kHz |
| THD |
| Range |
0.2% to 1000% |
| Resolution |
0.001 |
| Basic Accuracy |
0.2% to 600% THD: ±5% of Reading + 2cts |
| Frequency Range |
Fundamental 40Hz to 70Hz |
| Display |
Digital: %THD and True RMS (A or V), Bar graph: True RMS (A or V) |
| Individual Harmonics |
| Range |
0.2% to 300% (%THD or %DF) |
| Rank |
Hdc (DC component), H01 to H25 |
| Resolution |
0.001 |
| Accuracy |
Distortion>10% and rank / Distortion<10% and rank>H13: 10% Reading ±2cts /; Distortion<10% and rank / Distortion<10% and rank>H13: 15% Reading ±2cts |
| Frequency Range |
Fundamental 40 to 70Hz, 25th order |
| Display |
Digital: %THD and Individual Harmonic value (A or V), Bar graph: True RMS (A or V) |
| CBEMA THDF |
| Range |
0.10 to 1.00 |
| Rank |
Hdc (DC component), H01 to H25 |
| Resolution |
0.01 |
| Basic Accuracy |
±2% of Reading + 2cts |
| Frequency Range |
Fundamental 40Hz to 70Hz, 25th order |
| Display |
Digital: THDF, Bargraph: ARMS |
| Transformer |
K-Factor Rating |
| Range |
1 to 10 / 10 to 30 |
| Resolution |
0.1 |
| Basic Accuracy |
±5% of Reading + 2cts / ±10% of Reading + 2cts |
| Display |
Digital: %THD or K Factor, Bar graph: ARMS |
| Ripple |
| Input Range |
.1% to 999.9% |
| Range |
2 to 99.9% / 100 to 999.9% |
| Resolution |
0.001 |
| Basic Accuracy |
±5% of Reading + 10cts / ±5% of Reading + 2cts |
| Display |
Digital: % Ripple, Bar graph: DC (A or V) |
| Crest Factor |
| Input Range |
1.00 to 10.00 |
| Range |
1.00 to 3.50 / 3.51 to 5.99 / 6.0 to 10.0 |
| Resolution |
0.01 |
| Minimum Input |
>5V or >5A |
| Accuracy (40 to 450Hz) |
± 2% of Reading + 2cts / ± 5% of Reading + 2cts / ± 10% of Reading + 2cts |
| Display |
Digital: CF, Bargraph: True RMS (A or V) |
| Frequency |
| Input Range |
0.5Hz to 20,000Hz |
| Range |
0.5Hz to 999.9Hz / 1000Hz to 9999Hz / 10kHz to 20kHz |
| Minimum Input Signal |
2A or 2V |
| Accuracy |
±0.2% of Reading + 2cts / ±0.5% of Reading + 2cts |
| Display |
Digital: Hz, Bargraph: DC(A or V), True RMS (A or V) |
| DC Volts |
| Input Range |
±0.05 to ±600V |
| Range |
0.05 to 59.99V / 60 to 1500V Peak |
| Basic Accuracy |
±1% of Reading + 10cts / ±1% of Reading + 2cts |
| Input Impedance |
1MW |
| Overload Protection |
| Voltage |
1.5kV Peak permanent |
| Current |
1000A AC (50/60Hz) permanent |
| General Specifications |
| Display |
Quadriplexed LCD, dual digital display (10mm, 5mm), 4 digits 10,000 counts, 31-segment bar graph |
| Case |
Gray Lexan 920A, UL 94 V2 |
| Jaws |
Red Lexan 500R, 10% fiberglass, UL 94 V0 |
| LCD Lens |
Crystal Lexan 920A, UL 94 V1 |
| Battery |
1.5V "AA" Alkaline (NEDA 15A, IEC LR6) |
| Battery Life |
Approximately 40 hrs continuous use |
| Dimensions |
10.8 x 4 x 2" (275 x 103 x 52mm) |
| Weight |
1.5 lbs |
| Mechanical Specifications |
| Envelope Protection |
IEC 529: IP 40 |
| Drop Test |
IEC 68-2-32: 1m |
| Vibration |
IEC 68-2-6 |
| Shocks |
IEC 817 |
| Electromagnetic Compatibility |
| Electrostatic Discharge |
IEC 801-2: No influence: 4kV class 2; Non-destructive: 15kV class 4 |
| RF |
IEC 801-3: No influence: 3V/m class 2; Minor influence: 10V/m class 3 |
| Transients |
IEC 801-4: No influence: 2kV class 4 |
| Electric Shocks |
IEC 801-5: No influence: 6kV class 3; CE Mark |
| Environmental Specification |
| Operating Temperature |
14° to 131°F (-10° to 55°C) |
| Storage Temperature |
-40° to 158°F (-40° to 70°C) |
| Operating Humidity |
0 to 90%RH to +40°C (75%RH @+55°C) |
| Storage Humidity |
0 to 95%RH |
| Safety Reference Specifications |
| Protection Level |
Double insulation; EN 61010-1, 600V, Cat. III, Pollution degree 2 |
| Working Voltage |
600VRMS |
| Dielectric Test |
5.5kV, 50/60Hz, I minute |
| Agency Approvals |
UL, CSA, GS, VDE |
