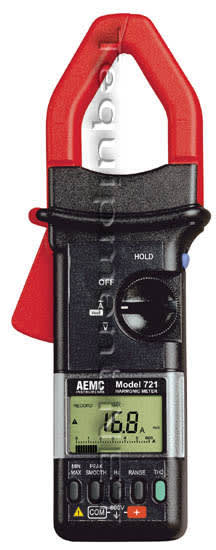

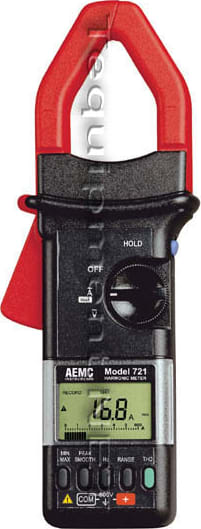

| AEMC 1208.52 Specifications |
| AC Current |
| Input Range |
0.05 to 700.0Arms, ±9.99.9A Peak |
| Range |
0.3 to 99.99A 100.0 to 400.0A 400.0 to 700.0A |
| Basic Accuracy |
2% of Reading +20cts 2% of Reading 5% of Reading |
| Crest Factor |
>3.0 below 300A |
| Frequency Range |
15Hz to 10kHz |
| Current Peak |
| Input Range |
0.05 to ±999.9A Peak |
| Range |
0.05 to 99.99A / 100 to 600A / 600 to 999.9A |
| Basic Accuracy |
±3% of Reading + 30cts / ±8% of Reading |
| AC Volts |
| Input Range |
0.05 to 600Vrms, 0.05 to ±1200V Peak |
| Range |
0.5 to 399.9V / 400.0 to 999.9V |
| Basic Accuracy |
±1.5% of Reading + 4cts / ±1.5% of Reading |
| Crest Factor |
>4.0 below 300V |
| Input Impedance |
1MW, 47pF |
| Frequency Range |
15Hz to 10kHz |
| Voltage Peak |
| Input Range |
0.05 to 99.99V / 100 to 999.9V |
| Basic Accuracy |
±3% of Reading + 30cts |
| THD |
| Range |
0.5% to 600.0% |
| Resolution |
0.001 |
| Minimum Input |
300mA, 300mV |
| Basic Accuracy |
±3% of Reading + 2cts |
| Accuracy Hz |
50/60Hz |
| Frequency Range |
Fundamental 45 to 65Hz, 25th harmonic |
| Display |
Digital: %THD, Bar graph: True RMS (A or V) |
| Crest Factor |
| Input Range |
1.00 to 10.00 |
| Resolution |
0.0001 |
| Minimum Input |
300mA, 300mV |
| Accuracy (40 to 450Hz) |
±10% of Reading + 3cts |
| Frequency Range |
15Hz to 10kHz |
| Display |
Digital: CF, Bargraph: True RMS (A or V) |
| Frequency |
| Range |
0.5 to 999.9Hz / 1000 to 9999Hz |
| Minimum Input Signal |
1A or 1V |
| Accuracy |
±0.1% of Reading + 1ct / ±0.2% of Reading + 1ct |
| Display |
Digital: Hz, Bar graph: True RMS (A or V) |
| Overload Protection |
| Voltage |
1.5kV Peak permanent |
| Current |
3000A AC permanent |
| Analog Output |
1.5kV Peak permanent |
| General Specifications |
| Display |
Quadriplexed LCD with 12.5mm digits; 4 digits, 9999 counts |
| Case |
Gray Lexan 920A, UL 94 V2 |
| Jaws |
Red Lexan 500R, 10% fiberglass, UL 94 V0 |
| LCD Lens |
Crystal Lexan 920A, UL 94 V1 |
| Battery |
9V Alkaline (NEDA 1604, 6LF22, 6LR61) |
| Battery Life |
Approximately 50 hr continuous use |
| Dimensions |
10 x 3.8 x 1.7" (254 x 97 x 44mm) |
| Weight |
1.3lb (600g) |
| Mechanical Specifications |
| Envelope Protection |
IEC 529: IP 40 |
| Drop Test |
IEC 68-2-32: 1m |
| Vibration |
IEC 68-2-6 |
| Shocks |
IEC 68-2-27 |
| Electromagnetic Compatibility |
| Electrostatic Discharge |
IEC 801-2: No influence: 4kV class 2; Non-destructive: 15kV class 4 |
| RF |
IEC 801-3: No influence: 3V/m class 2; Minor influence: 10V/m class 3 |
| Transients |
IEC 801-4: No influence: 2kV class 4 |
| Electric Shocks |
IEC 801-5: No influence: 1kV class 3; CE Mark |
| Environmental Specification |
| Operating Temperature |
+14° to 131°F (-10° to +55°C) |
| Storage Temperature |
-40° to 158°F (-40° to 70°C) |
| Operating Humidity |
0 to 80%RH to +40°C (50%RH @+55°C) |
| Storage Humidity |
0 to 95%RH |
| Safety Reference Specifications |
| Protection Level |
Double insulation; EN 61010-1, 600V, Cat. III, Pollution degree 2 |
| Working Voltage |
600VRMS |
| Dielectric Test |
5.5kV, 50/60Hz, I minute |
| Agency Approvals |
UL, CSA, GS, VDE |
