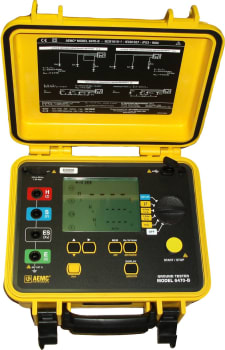

AEMC 6470-B Specifications |
3-Point Measurement |
Range (Auto-Ranging) |
0.01Ω to 99.99kΩ |
Resolution |
0.01Ω to 100Ω |
Test Voltage |
Nominal 16 or 32VRMS user selectable |
Resistance |
Measurement Frequency |
41 to 513Hz user selectable or automatic selection |
Test Current |
Up to 250mA |
Accuracy |
±2% of Reading + 1ct |
Earth Coupling Measurement |
Yes |
Soil Resistivity 4-Point Measurement |
Test Method |
Wenner or Schlumberger selectable with automatic calculation of test results in Ω-meters, Ω-cm or Ω-feet |
Range (Auto-Ranging) |
0.01 to 99.99kΩ |
Resolution |
0.01 to 100Ω |
Test Voltage |
16 or 32V user selectable |
Frequency |
From 41 to 128Hz selectable |
External Voltage Measurement |
Range (Auto-Ranging) |
0.1 to 65.0V - DC to 450Hz |
Accuracy |
2% of Reading + 3cts |
Resistance Measurement (Bond Testing) |
Measurement Type |
2-Point (with lead resistance compensation) or 4-Point (Kelvin sensing) user selectable |
Range (Auto-Ranging) |
2-Point 0.01Ω to 99.9kΩ; 4-Point 0.001Ω to 99.99kΩ |
Accuracy |
±2% of Reading + 2cts |
Test Voltage |
16Vdc (+, - or auto polarity) |
Test Current |
Up to 250mA max |
Data Storage |
Memory Capacity |
512 test results |
Communication |
Optically isolated USB |
Automatic Report Generation |
Yes - tabular listings and Fall-of-Potential plots |
Power Source |
9.6V rechargeable battery pack |
Recharging Source |
110/220 50/60Hz external charger with 18Vdc, 1.9A output or 12 Vdc vehicle power |
Mechanical |
Test Lead Connection |
4mm recessed banana jacks |
Mechanical Shock |
Per EN 61557 |
Vibration Test |
Per EN 61557 |
Drop Test |
Per EN 61557 |
Dielectric Test |
3kV 50/60Hz |
Dimensions |
10.7 x 9.76 x 5.12" (272 x 248 x 130mm) |
Weight |
7.5 lbs (3.5kg) |
Case |
Polypropylene |
Index of Protection |
IP53 with cover closed |
Display |
Display Type |
Custom 256 segment multi-line LCD |
Backlight |
Blue electroluminescent |
Communication |
Software |
DataView graphing, analysis and reporting software |
Environmental |
Operating Temperature |
14° to 122 °F (-10° to 55°C) |
Storage Temperature |
-40° to 158°F (-40° to 70°C) |
Safety |
Safety Rating |
EN 61010-1 50V Cat IV, Pollution Degree 2 |
Double Insulation |
Yes |
CE Mark |
Yes |
