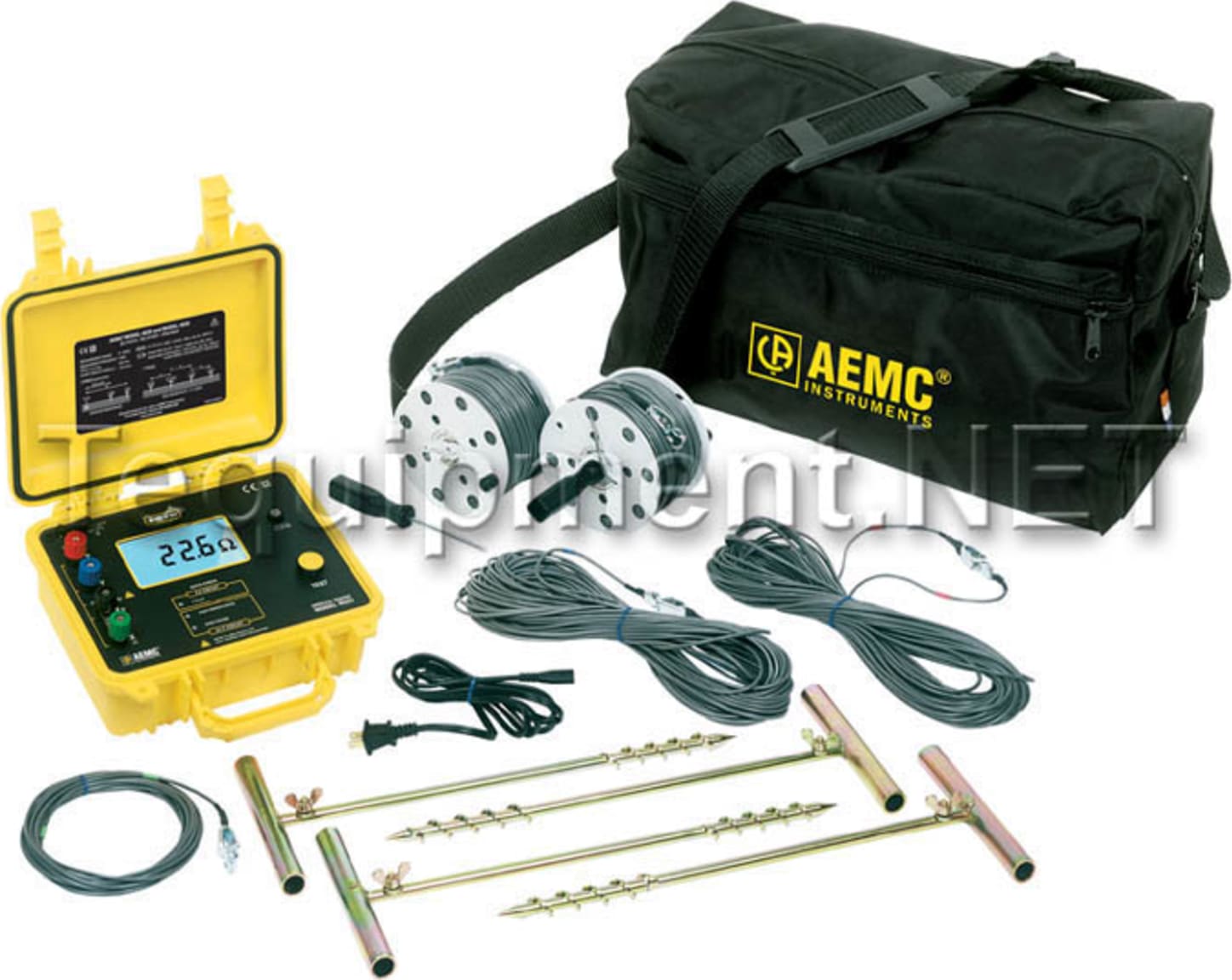

AEMC 2130.45 Specifications |
Measurement Range |
Range |
20Ω / 200Ω/ 2000Ω |
Measurement Range |
0.00 to 19.99Ω / 20.0 to 199.9Ω / 200 to 1999Ω |
Resolution |
10mΩ / 100mΩ / 1Ω |
Test Current |
10mA / 1mA / 0.1mA |
Accuracy |
±2% of Reading ± 1ct / ±3% of Reading ± 3cts |
Auxiliary Electrode Influence |
Current Circuit: 200Ω; Voltage Circuit: 2000Ω / Current Circuit: 30kΩ; Voltage Circuit: 50kΩ / Current Circuit: 50kΩ; Voltage Circuit: 50kΩ |
Open Voltage |
<42V peak |
Resistance Measurement Frequency |
128Hz square wave |
Interference |
Rejects high levels of interference voltage (DC, 50 to 60Hz, harmonics): DC voltage in series with X: 20V; AC voltage in series with Y: 13V peak; AC voltage in series with Z: 32V peak |
Response Time |
Approximately 6 seconds for a stabilized measurement |
Voltage Withstand |
250VAC with spikes of 3000VAC or 1000VDC |
Power Source |
Eight C cell batteries |
Battery Life |
1800 15-second measurements |
Fuse Protection |
0.1A, 250v, 0.25 X 1.25"; 30kA Interrupt Capacity |
Mechanical Specifications |
Display |
3-1/2, 0.71" (18mm) high; 2000-count; electroluminescent blue backlight - LCD also indicates overrange, test lead shorts and lead reversals |
Connection |
Color-coded terminals accept lugs with min. a gap of 6mm or standard 4mm banana jacks |
LED Indication |
Three LEDs indicate high input noise, high auxiliary rod resistance, open leads, blown fuse |
Operating Temperature |
14° to 131°F (-10° to 55°C), 20 to 90% RH |
Storage Temperature |
-40° to 158° F (-40 to 70° C), 0 to 90% RH with batteries removed |
Dimensions |
9.45 x 7.28 x 4.33" (240 x 185 x 110mm) |
Weight |
7.75 lbs (3.5kg) |
Case |
Heavy-duty o-ring sealed field case |
Colors |
Case: safety yellow; Front panel: gray |
Mechanical Shock |
IEC 68-2-27 |
Vibration Test |
IEC 68-2-6 |
Drop Test |
IEC 68-2-32 |
Dielectric Test |
3kV, 50/60Hz, 1 min. between four interconnected measuring terminals and any external metal ground |
Environmental |
O-ring sealed against dust and water to IP50 (Protection Index) |
Safety Reference Specifications |
Safety Ratings |
EN 61010-1, Cat. III, Pollution Degree 2, 42V |
Agency Approvals |
CE Mark |
