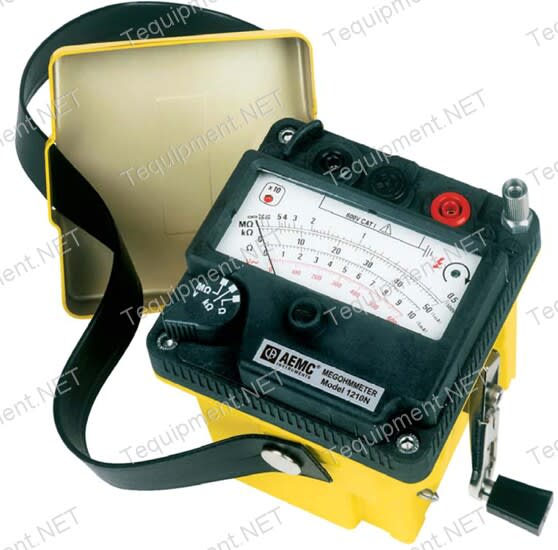

| AEMC 1326.01 Specifications |
| Test Voltage |
| Test Voltage |
500VDC |
| Measurement Range |
0.5 to 5.5MW, 5.5 to 200MW |
| Short Circuit Current |
5mA (max.) |
| Accuracy |
2.5% of full scale |
| Automatic Discharge |
5 s/µF |
| Charging Time |
0.5 s/µF |
| Voltage Warning Indicator |
Amber LED indicates proper test voltage and crank speed |
| Resistance Tests |
| Measurement Range |
0 to 45kW, 45 to 500kW |
| DC Test Current |
1mA constant current, 600V max. |
| Accuracy |
2.5% full scale |
| Charging Time |
0.5 s/µF |
| Discharging Time |
5 s/µF |
| Continuity Tests |
| Measurement Range |
0 to 9W, 9 to 100W autoranging |
| Test Current |
5mA constant, 10V |
| Accuracy |
2% full scale |
| Fuse Protection |
0.2A 250V fast-blow 5x20mm |
| Voltage Tests |
| Measurement Range |
0 - 600VAC |
| Frequency |
45 to 450Hz |
| Accuracy |
3% of the full scale |
| Input Impedance |
100kW |
| Display |
| Analog Display |
Rugged taut band suspension |
| General Specifications |
| Power Source |
Hand-cranked |
| Dielectric Test |
2000V 50/60Hz, between (-), (+), and ground terminals |
| Dimensions |
4.7 x 4.7 x 5.1" (120 x 120 x 130mm) |
| Weight |
3.3 lbs (1.5kg) |
| Temperature Range |
64° to 75°F (18° to 24°C), 30 - 50% RH |
| Operating Range |
14° to 122°F (-10° to 50°C), 0 - 80% RH |
| Storage Range |
-4°F to 176°F (-20° to 80°C), 0 - 90% RH |
| Case |
Cast aluminum alloy case and lid painted safety yellow, with heavy-duty gray polycarbonate front panel; O-ring sealed between front panel and case; sealed against water and dust; folding crank |
| Terminals |
"+" Line (red); "-" earth (black); accept standard 4mm safety banana plugs; ground accepts 4mm banana plug or spade lugs |
| Safety Reference Specifications |
| Safety Ratings |
IP54 with lid, IP52 without lid, VDE413 part 1/4 except f, IEC414, IEC529, MIL-T-38800D, IEC51 |
| Agency Approvals |
CE Mark |
