General Specifications |
|
OX 9062 |
OX 9102 |
OX 9104 |

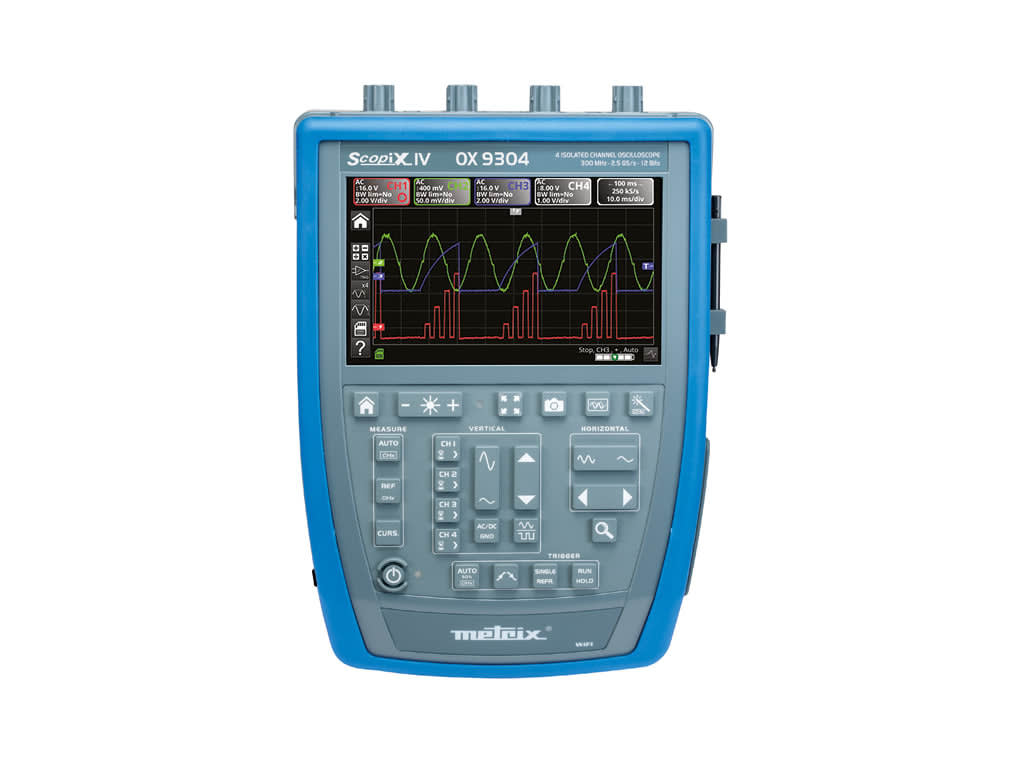

OX 9304 |
Type of display |
7‘’ WVGA colour TFT LCD touch screen, 800x480 – LED backlighting (adjustable standby mode) |
Different display mode |
2,500 real acquisition points on screen - Vectors with interpolation |
Display of curves on screen |
4 curves + 4 references – Split Screen & Full Screen modes |
Screen commands |
Touch screen – ANDROID-type icons and graphical commands – customizable channel colours |
Choice of language |
15 complete languages, menus & online help |
Vertical deflection |
Bandwidth |
60 MHz |
100 MHz |
100 MHz |
300 MHz |
15 MHz, 1.5 MHz or 5 kHz bandwidth limiter |
Number of channels |
2 isolated channels |
4 isolated channels |
Input impedance |
1 MΩ ± 0.5% , approx. 12 pF |
Maximum input voltage |
600 V / CAT III (1,000V per Probix) – from 50 to 400 Hz – Probix safety connectors |
Vertical sensitivity |
16 calibres from 2.5 mV to 200 V/div and up to 156 µV/div in vertical zoom mode (12-bit converter) – Accuracy ± 2% |
Vertical zoom |
"One Click Winzoom" mode (12-bit converter and direct graphical zoom on screen) – x 16 max |
Probe factor (non-Probix) |
1 / 10 / 100 / 1,000 or any scaling – definition of measurement unit |
Horizontal deflection |
Sweep speed |
35 calibres from 1 ns/div to 200 s/div., accuracy ± [50 ppm + 500 ps] – Roll mode from 100 ms to 200 s/div |
Horizontal zoom |
"One Click Winzoom" system (direct graphical zoom on screen) x 1 to x 5 or x 100 – storage 100 kpts/channel |
Triggering |
Mode |
On all the channels: automatic, triggered, one-shot, auto level 50% |
Type |
Edge, pulse width (16 ns-20 s), delay (48 ns to 20 s), counting (3 to 16,384 events)
Continuous adjustment of Trigger position |
Sensitivity |
≤ 1.2 division p-p up to 300 MHz |
Digital storage |
Maximum sampling rate |
2.5 GS/s in one-shot mode on each channel (100 GS/s max. in ETS mode) |
Vertical resolution |
12 bits (vertical resolution 0.025 %) |
Memory depth |
100 kpts per channel and file viewer in the manager |
User storage File management |
Internal = 1 GB to store the files: trace, text, configuration, math functions,
System memory: .pdf print files, .png image files
+ high-capacity removable µSD-Card: SD 2 GB, SDHC 4-32 GB and SDXC > 32 GB |
GLITCH mode |
Duration ≤ 2 ns – 500,000 Min/Max pairs |
Display modes |
Envelope, vector, accumulation-, averaging (factors 2 to 64) – XY (vector) and Y(f)=FFT |
Other functions |
AUTOSET |
Complete in under 5 s, with recognition of the channels – Frequency > 30 Hz |
FFT analyser & MATH functions |
2,500-point FFT (Lin or Log) with measurement cursors – Functions + , - , x , / and mathematical function editor |
Cursors |
2 or 3 cursors: simultaneous V and T with AUTO measurement: T1, T2, Dt, 1/Dt, dBV, Ph |
Automatic measurements |
Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll |
General specifications |
2 or 4 channels – 8,000 cts min/max/frequency/relative – TRMS – Time/date-stamped graphical recording in logger mode |
AC, DC and AC + DC voltages |
600 mV to 600 VRMS, 800 mV to 800 VDC – VDC accuracy +/- (0.5 % + 25 D) – 200 kHz bandwidth |
Resistance |
80 Ω to 32 MΩ – accuracy 0.5%R+ 25D – Quick continuity test < 10 ms |
Other measurements |
Temperature (HX0035 = KTC, HX0036 = Pt100) / Capacitance 5nF to 5mF / Frequency 200 kHz / Diode test 3.3 V |
Single and three-phase power |
Active, Reactive and Apparent power values plus Power Factor simultaneously with the U & I measurements |
Multi-channel analysis |
2 or 4 (depending on model), 63 orders, fundamental frequency 40 to 450 Hz in auto or manual mode |
Simultaneous measurements |
Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms) |
Multi-channel analysis |
2 or 4 (depending on model), 63 orders, fundamental frequency 40 to 450 Hz in auto or manual mode |
Simultaneous measurements |
Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms) |
Acquisition |
Duration: 20,000 s – Interval: 0.2 s – Files: 100,000 measurements |
Technical Specifications |
Configuration memories |
Not limited according to device - variable file sizes |
Printing |
Network printing via Ethernet/Wifi in .png format |
PC communication – software link |
Ethernet (100 baseT), WiFi-USB (device, 12 Mbs) – "ScopeNet" application software for PC |
Software |
PC: Ethernet and USB, ScopeNet (remote control, data recovery, cursors and automatic measurements)
Android tablet – ScopeAdmin Fleet Administration utility |
Mains power supply |
Li-Ion rechargeable battery (6,900mAH-40 Wh) – Battery life of up to 8 hrs – Adjustable standby mode
Adapter / 2-hour fast charger, universal 98-264 V / 50/60 Hz) |
Safety / EMC |
Safety as per IEC 61010-2-30, 2010 – 600 V CAT III / 1000 V CAT II – EMC as per EN61326-1, 2010 |
Mechanical specifications |
292.5 x 210.6 x 66.2 mm – 2.1 kg with batteries – IP54 protection |
