• Inputs / Bandwidth:  Isolated channels
• Input Impedance:  1MΩ ± 0.5%, approx. 12pF
• Screen Specifications:  Color 7" WVGA TFT LCD touch screen, 800 x 480
• Display Mode:  Vectors with interpolation - 2500 real acquisition points on screen
• Traces On Screen:  4 Traces + 4 References (split screen and full screen modes)
• Front Panel Control:  32 keys
• Screen Control:  Touch screen - ANDROID type icons and graphical commands

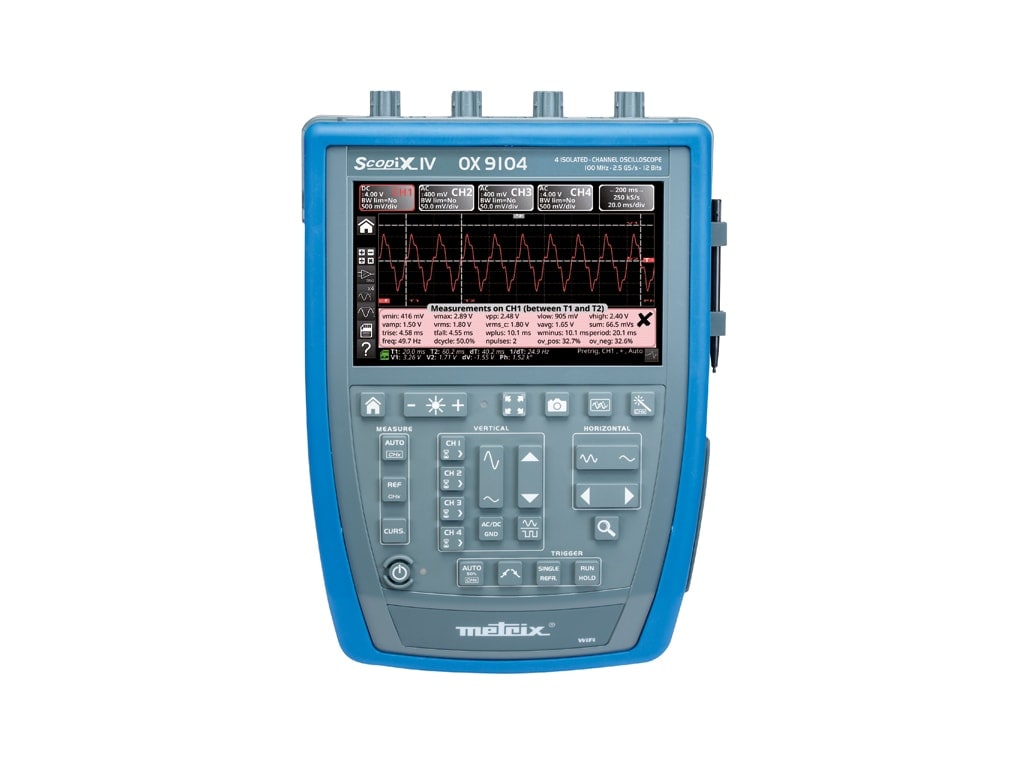

The Model OX 9104 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, four-channel oscilloscope with 100MHz bandwidth, 4 channel DMM 8000 cts, FFT function and recording mode, and power measurement.

Large touch screen 7” color LCD display

Ideal for both laboratory and field use, the Model OX 9104 utilizes the patented system of “plug-and-play” accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC. Android App available to download from Google play store.

The ergonomics of the SCOPIX IV portable oscilloscopes has been designed to simplify their use. In a casing tailor-made to be as compact as possible, the external mechanical design of the SCOPIX IV makes it possible to integrate the hardware components in a very small volume, while the keypad benefits from a new technology developed in the automotive industry.

Applications

Electronic maintenance

The OX 9304 model is ideal for electronics with its 300 MHz bandwidth, 4 x 600 V CAT III isolated channels, advanced trigger functions, integrated FFT function, complex mathematical calculations on the curves, automatic measurements on 4 channels and the built-in WEB server.

Fieldbus maintenance

The “bus” version of the SCOPIX IV includes a function for testing the physical integrity of buses to ensure the physical quality of the fieldbuses (CAN, LIN, FLEXRAY, UART, SPI, etc.).

Industrial maintenance

The OX 9062’s large 7-inch screen, 60 MHz bandwidth, 2 x 600 V CAT III isolated channels and Harmonic Analyser and Multimeter modes make it ideal for industrial maintenance applications.

Analysis of the harmonics

Harmonic analysis is performed on all 4 channels up to the 63rd order to comply with the requirements of the EN 50160 standard (THD on 50 orders minimum), with a fundamental frequency between 40 and 450 Hz.

It is possible to preselect the frequency of the fundamental for the standards (50 Hz, 60 Hz and 400 Hz).

This function helps to improve analytical performance and, above all, measurement when the level of a harmonic order is greater than the fundamental.

It is possible to view the harmonic analyses of two or four channels simultaneously: RMS level, harmonic distortion, harmonic frequency, phase of the harmonic in relation to the fundamental.

Multimeter

By simply selecting the dedicated pictogram, you can gain access to the multimeter mode without changing the measurement input channels. The OX 9000 models offer a genuine 8,000-count TRMS digital multimeter with two or four channels that can perform the following measurements:

• amplitude (DC or AC voltage and current, power, temperature, etc.)
• resistance, continuity, capacitance
• component tests

Temperature is measured using the Pt 100 and Pt 1000 sensors or K thermocouples via the dedicated PROBIX sensors.

Power available in Multimeter mode

The power measurements are proposed as follows with choice of the configuration:

• single-phase power
• three-phase power on balanced network without neutral
• three-phase power on balanced network with neutral
• 3-wire three-phase power (2-wattmeters method)
