AEMC MH60 - AC/DC Current Probe (100A, 1MHz, BNC)

Name: AEMC MH60 - AC/DC Current Probe (100A, 1MHz, BNC)
Brand: AEMC Instruments
SKU: AEMCMH60
Price: 679.25 USD
Availability: InStock

0 reviews | Catalog: 2153.03 | UPC: 685338030457 | Model: AEMC Instruments MH60

Compare

AC/DC Current Probe Model MH60 (100A, 1MHz, BNC)

AC/DC Current Probe Model MH60 (100A, 1MHz, BNC)
Designed to measure DC and AC currents up to 1 MHz using dual Hall effect/Transformer technology
Powered using a 5 VDC power supply via the female type-B µUSB connector with which it is equipped
Automatic standby system
Ability to measure AC+DC signals is useful for True RMS measurements

View Product Details

List Price: $715.00

Your Price: $679.25

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

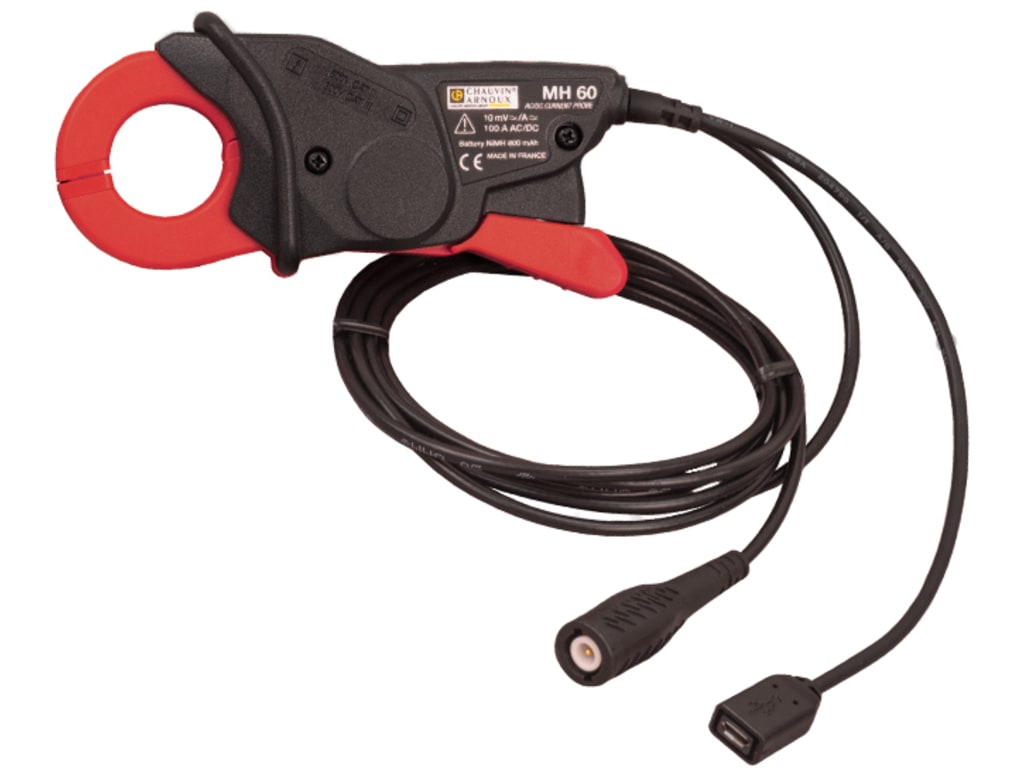

AEMC MH60

AC/DC Current Probe Model MH60 (100A, 1MHz, BNC)
Designed to measure DC and AC currents up to 1 MHz using dual Hall effect/Transformer technology
Automatic standby system

AC/DC Current Probe (100A, 1MHz, BNC)

The MH60 clamp is designed to measure DC and AC currents up to 1 MHz using dual Hall effect/Transformer technology.

It includes an internal NiMH rechargeable battery and can be recharged or powered using a 5 VDC power supply via the female type-B μUSB connector with which it is equipped.

It has an automatic standby system (which can be deactivated), an automatic “DCzero” system for compensation of magnetic and electronic drift, a switchable selective filter (3 kHz, 30 kHz), and a system for compensating the effects of the earth field and other constant DC fields.

Its ability to measure AC+DC signals is useful for True RMS measurements.

General Specifications
Current range	0.5 .. 100 A DC (140 A peak)
Output signal	10 mV AC+DC / A AC+DC (1 V at 100 A)
Bandwidth	DC .. 1 MHz (-3 dB) (depending on current value)
Rise time and fall time	From 10 % to 90 % Without filter: 350 ns With filter 30 kHz: 11.7 μs With filter 3 kHz: 117 μs
dI/dt @ 2 A peak-peak	5 A / μs
Delay time @ 2 A peak-peak	0.35 μs typical
Insertion impedance	~ 0.25 mΩ @ 400 Hz ~ 0.628 mΩ @ 1 MHz
DC zero adjustment	±3 A by push button
Noise RMS	Without filter: 15 mA typical (< 88 mA peak-peak) 30 kHz filter: 5 mA typical (< 36.6 mA peak-peak) 3 kHz filter: 4 mA typical (< 35.8 m A peak-peak)
Battery	Internal NiMh rechargeable battery + 5 VDC external via female μUSB type B connection
Battery life	8 hours typical wit-10 °C .. +45 °C: ≤ 1,200 /°C +45 °C .. +50 °C: ≤ 2,200 ppm /°Ch fully-charged battery
Typical consumption	< 150 mA (battery charging)
Low battery signal	Flashing green LED x 2 hours
Overload indication	RED “OL” LED to indicate excessive measurement current
Influence of temperature	-10 °C .. +45 °C: ≤ 1,200 /°C +45 °C .. +50 °C: ≤ 2,200 ppm /°C
Influence of conductor position in jaws	≤ 1.5 % of output signal
Common mode voltage (600 V max) for AC measurements (typical/max)	at 50 Hz: 3.5 mA/5 mA @ 100 V at 400 Hz: 25.9 mA/50 mA @ 100 V
Mechanical Specifications
Clamping capacity	Cable: Ø max 26 mm
Max. jaw insertion capacity	≤ 90 °C
Output	Built-in cable 2 m long with moulded isolated male BNC plug
Dimensions	138 x 49 x 28 mm
Weight	200 g approx.
Operating temperature	-10 °C to +50 °C
Storage temperature	-20 °C to +50 °C
Relative humidity for operation	0 to 85 % RH with a linear decrease above 35 °C
Operating altitude	0 to 2,000 m
Casing protection rating	IP 40 (EN 60529)
Drop test	1 m (EN 60068-2-32)
Shock resistance	100 g / 6 ms / half-periode (IEC 68-2-27)
Vibration resistance	10/55/10 Hz, 0.15 mm (IEC 68-2-6)
Self-extinguishing capability	UL94 V2
Colours	Casing: dark grey Jaws: red
