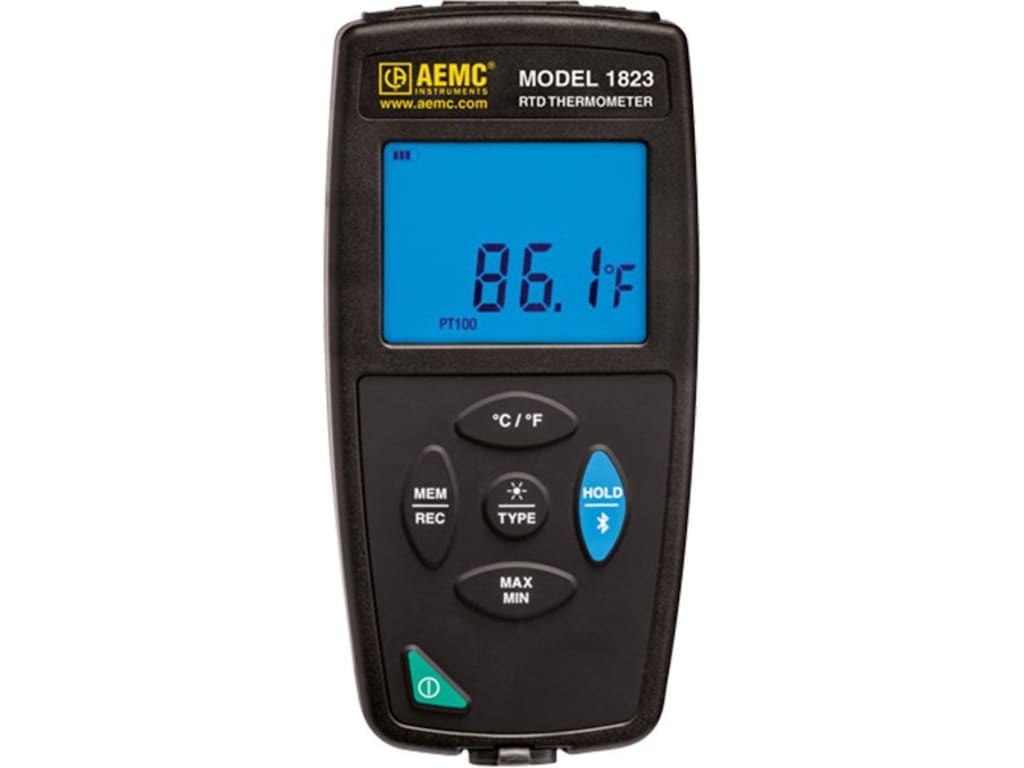

AEMC C.A1823 - RTD Thermometer Datalogger

Name: AEMC C.A1823 - RTD Thermometer Datalogger
Brand: AEMC Instruments
SKU: AEMCC.A1823
Price: 323.00 USD
Availability: InStock

0 reviews | Catalog: 2121.76 | UPC: 685338180336 | Model: AEMC Instruments C.A1823

AEMC C.A1823 Thermocouple Thermometer Datalogger

Compare

RTD Thermometer Datalogger Model 1823

RTD temperature measurement (Model 1823)
Works with 100 or 1000 Ohm platinum sensor (Model 1823) - RTD SENSOR NOT INCLUDED
Magnetic mount
Programmable alarms through software
DataView® graphing and analysis software included
User selectable temperature units, °F, °C
Min, and Max measurements stored
HOLD function freezes the display
Spot or continuous recording up to 1 million measurements
Blue luminescent backlit display

View Product Details

List Price: $340.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the AEMC Instruments C.A1823

AEMC Instruments 2138.66 Cable Replacement 6 ft. USB Type A - Type B micro for Models...

Catalog: 2138.66

(0)

In Stock!

Add to Cart

AEMC Instruments 2122.31 Shock Proof Housing for Models 1110, 1227, 1246, 1821, 1822...

Catalog: 2122.31

(0)

In Stock!

Add to Cart

AEMC Instruments 2153.78 Adapter - Wall plug to USB (Replacement for Models L452,...

Catalog: 2153.78

(0)

In Stock!

Add to Cart

AEMC Instruments 5000.82 3-Prong mini flat pin connector for Thermocouple, RTD {this...

Catalog: 5000.82

(0)

In Stock!

Add to Cart

AEMC Instruments 5000.44 MultiFix (universal mounting system) for use with models...

Catalog: 5000.44

(0)

In Stock!

Add to Cart

AEMC C.A1823

Works with 100 or 1000 Ohm platinum sensor
Battery or USB powered
User selectable temperature units, °F, °C
Min and Max measurements stored

RTD Thermometer Datalogger

The Thermocouple Thermometer Data Logger Model 1821 is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is its ability to perform a variety of recording tasks with an easy and intuitive setup from a computer using supplied DataView software.

General Specifications
MODELS	1821	1822	1823
Measurement Range	J-346° to +2192°F (-210° to +1200°C) K-328° to +2501°F (-200° to +1372°C) T-328° to +752°F (-200° to +400°C) N-328° to +2372°F (-210° to +1300°C) E-238° to +1742°F (-150° to +950°C) R, S +32° to +3212°F (0° to +1767°C)		- 100 to + 400°C -148 to + 752°F
Accuracy (°C)	J, K, T, N, E ø ≤ - 100°C ± (0.2% Reading + 0.6°C) - 100°C < ø ≤ + 100°C ± (0.15% R + 0.6°C)		± (0.4% R + 0.3°C)
	R, S + 100°C < ø ± (0.1% R + 0.6°C) ø ≤ + 100°C ± (0.15% R + 1.0°C) + 100°C < ø ± (0.1% R + 1.0°C)
Resolution	°C: ø< 1,000°C : 0.1°C and ø ≥ 1,000°C : 1 °C °F: ø< 1,000°F : 0.1°F and ø ≥ 1,000°F : 1 °F		°C : 0.1°C °F : 0.1°F
General
Recording	Manual start/stop on the product Short press for MEM: spot recording/long press for REC at the defined default rate Programed recording: start date, recording interval, and end date defined using DataView® software
Other Function	MIN-MAX, Alarms
Sampling Rate	Programmable from 1s, 2s, 5s, 10s, 20s, 30s, 2min, 5min, 10min, 15min, 30min, and 1hr
Memory	1,000,000 measurements on each channel. Recorded data is stored in nonvolatile memory and will be retained even if battery is low or removed.
Communication	USB 2.0 and Bluetooth 4.0 BLE range 10m typica
Power Source	3x1.5V AA (LR6) alkaline batteries or USB port (micro-USB adaptor offered as an accessory)
Battery Life	1,000 hrs		800 hrs
	3yrs recording with 15 minutes intervals
Dimensions	5.9 x 2.84 x 1.28" (150 x 72 x 32mm)
Weight (with battery)	9.2oz (260g) with batteries
Case	Polycarbonate
Operating temperature	14° to 140°F (-10° to 60°C)
Storage temperature	-4° to 140°F (-20° to 60°C)
Relative Humidity	Up to 85% at 95°F (35°C)
Ingress Protection (IP)	IP50 with USB connector cap on
EMC	EN 61326-1
Safety Compliance	IEC 61010-1
Warranty	2 years

Tech Specs

Test Equipment General Attributes
Warranty	2 YEARS
Interfaces I/O	Bluetooth, USB
IP Rating	IP50
Product Weight	0.57 LBS Product Weight with batteries
Product Height	1.26 IN
Product Length	5.91 IN
Product Width	2.83 IN
Shipping Weight	6.00 LBS
Data Logging	Yes
HTS/Schedule B Number	9025.80.5000
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	France
