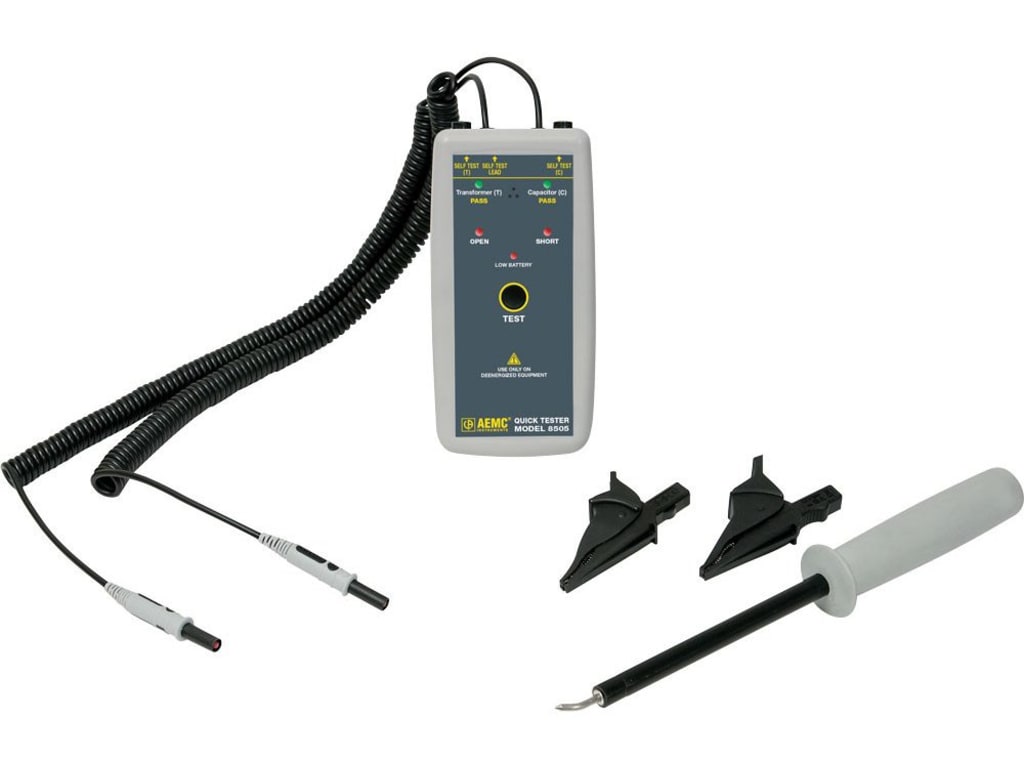

The AEMC Quick Tester Model 8505 is a hand-held instrument for performing quick, basic integrity tests on all transformers and capacitors used by electrical utilities. The Model 8505 verifies transformer winding continuity without requiring a full transformer ratio test. A single user can check a shipment of incoming transformers. Any units that have a defective coil can be quickly pinpointed and turned around for repair. The instrument provides a simple, single-button operation whereby the user only needs to make the proper connections and push a button. Test results are clearly indicated by bright LEDs and (when applicable) a buzzer. The instrument includes captive cables with safety clips, a test probe, built-in fuse protection, and operates on four AA batteries.
Applications:
Incoming inspection tool for transformers and capacitors
Industrial-scale power transformers and capacitors may be damaged during shipping or may be faulty due to workmanship issues. The Quick Tester Model 8505 enables an inspector to quickly determine whether or not a shipment of transformers and/or capacitors have open or short conditions that render them unusable. It also can verify switch functionality.
Quick authentication of an installed unit
The Model 8505 can also be used to quickly determine whether or not an installed (de-energized) transformer is operational. However, a full transformer test is required for the final validation of any transformer for field credibility, which can be accomplished using AEMC’s Digital Transformer Ratiometer Model 8510.
