AEMC 2133.12 - Motor Test Kit (Medium Voltage)

Name: AEMC 2133.12 - Motor Test Kit (Medium Voltage)
Brand: AEMC Instruments
SKU: AEMC2133.12
Price: 736.25 USD
Availability: InStock

0 reviews | Catalog: 2133.12 | UPC: 685338120080 | Model: AEMC Instruments 2133.12

Compare

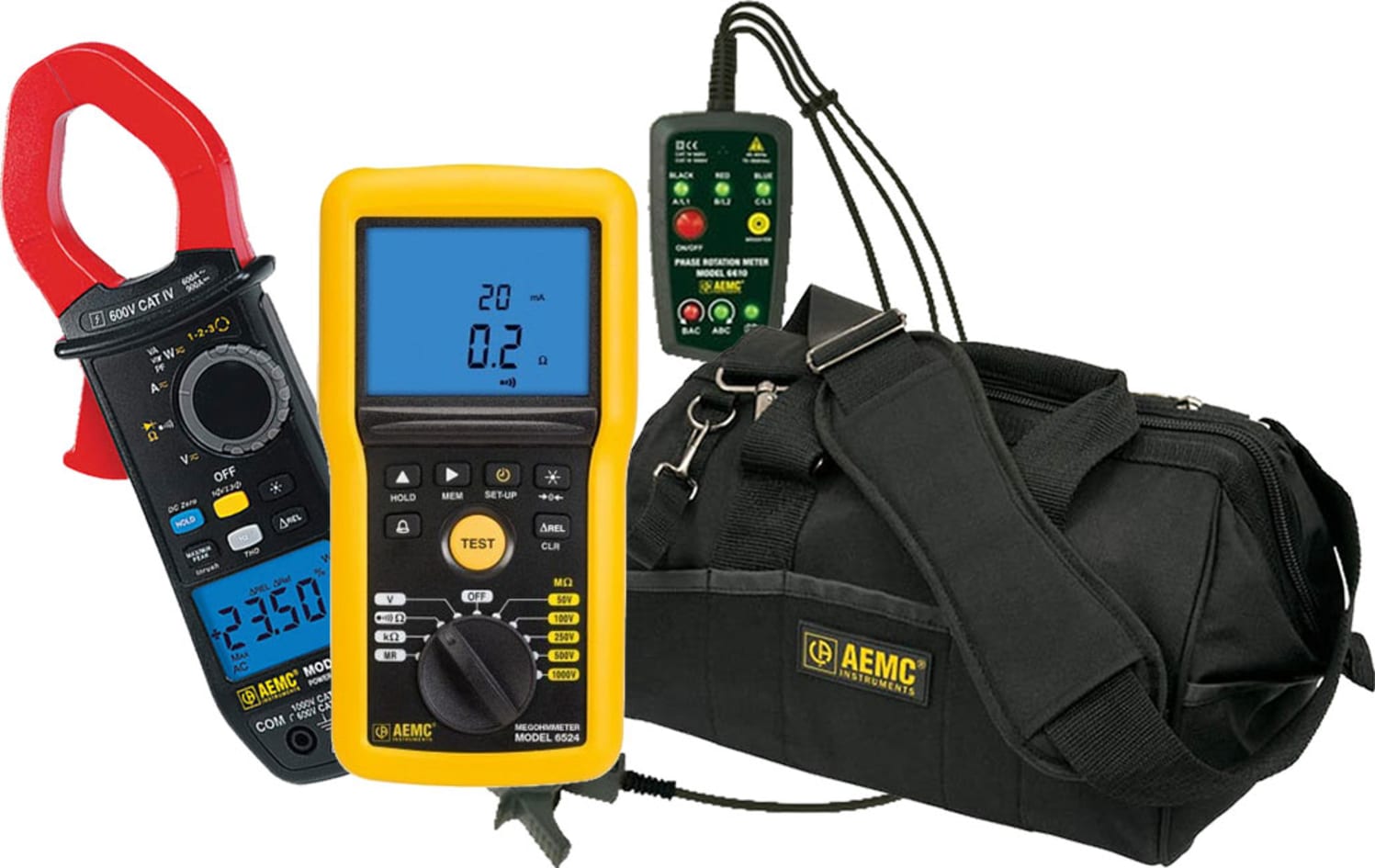

Motor Test Kit (Medium Voltage) includes: Model 6524, 6610, 205 and tool bag

Kit includes
- Megohmmeter Model 6524 (Digital with Analog Bar graph, Alarm, 50V, 100V, 250V, 500V, 1000V, Ohm, Continuity, V, k, Memory)
- AEMC 6610 2121.12 Phase Rotation Meter
- AEMC 2139.40 Power Clamp-On Meter Model 205
- Tool Bag

View Product Details

List Price: $775.00

In Stock:

View Payment Options

Recommended for you

AEMC 2133.12 - Motor Test Kit (Medium Voltage)

Kit includes
- Megohmmeter Model 6524 (Digital with Analog Bar graph, Alarm, 50V, 100V, 250V, 500V, 1000V, Ohm, Continuity, V, k, Memory)
- AEMC 6610 2121.12 Phase Rotation Meter
- AEMC 2139.40 Power Clamp-On Meter Model 205
- Tool Bag

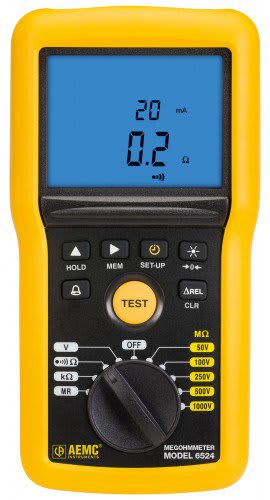

AEMC Megohmmeter Model 6524

The Megohmmeter Model 6524 is a handheld, battery-powered, multi-function 1000V digital insulation resistance tester with onboard memory. It is designed to measure Insulation Resistance, Continuity, Resistance, Frequency, and Voltage. With a safety rating of 600V CAT IV and IP 54, the Model 6524 performs insulation resistance at 50, 100, 250, 500, and 1000V measuring insulation values up to 200GΩ. Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current. PI, DAR, and Alarms function is standard. The Model 6524 includes a Timer and Lock function which allows the user to operate the unit hands-free. An automatic safety check protects the user and meter with audiovisual signals and test inhibition when >25V is present on a test sample. Large digital/analog multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight.

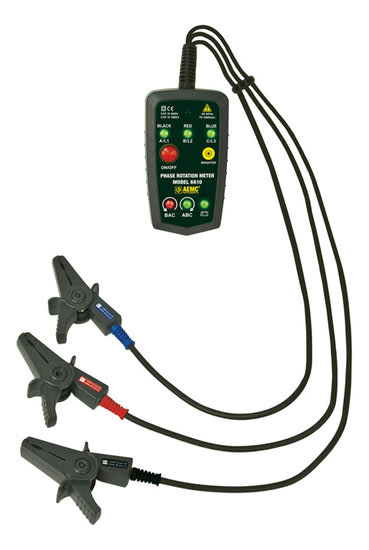

AEMC 6610 2121.12 Phase Rotation Meter

The Phase Rotation Meter Model 6610 is an essential tool for any installation, inspection, and maintenance facility. The Model 6610 is a non-contact (no metal contact points) phase meter designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected. The presence of live wires and phase sequence is provided by LED indication and buzzer as soon as detection has occurred. The Model 6610 is ideal for installing rotating machinery or motors, and for checking generator phase rotation direction.

AEMC 2139.40 Power Clamp-On Meter Model 205

The True RMS Clamp-On Meter 205 is safety rated at 600V CAT IV. It measures AC + DC volts and amps, frequency, continuity, resistance and can also perform diode checks. It also measures Power and Power Factor, phase rotation, and THD. A Delta relative function allows new measurements to be compared to a reference value and a MIN/MAX function keeps track of these high and low values. The Model 205 also keeps track of peak + and peak – values.

The Model 205 is rugged enough for the most demanding work environments and its IP54 rating allows it to withstand both dust and water spray. Function selection can easily be performed with one hand, even with a glove on.

AEMC 2133.12 Specifications
MODELS	6522	6524	6526	6532	6534	6536
INSULATION TESTS
Test Voltages	250V, 500V, 1000V	50V, 100V, 250V, 500V, 1000V	50V, 100V, 250V, 500V, 1000V	50V, 100V	10V, 25V, 100V, 250V, 500V	Variable 10 to 100V (1V steps)
Insulation Resistance	40GΩ (40000MΩ)	200GΩ (200000MΩ)	200GΩ (200000MΩ)	20GΩ (20000MΩ)	50GΩ (50000MΩ)	20GΩ (20000MΩ)
PI/DAR Ratios	-	Yes	Yes	Yes	-	-
Test Lock	Yes	Yes	Yes	Yes	Yes	Yes
Timer	0 to 40min	0 to 40min	0 to 40min	0 to 40min	0 to 40min	0 to 40min
Auto Discharge	Yes	Yes	Yes	Yes	Yes	Yes
Automatic Test Inhibit	>25V	>25V	>25V	>25V	>25V	>25V
DMM FUNCTIONS
Voltage	700Vac/dc	700Vac/dc	700Vac/dc	700Vac/dc	700Vac/dc	700Vac/dc
Resistance	-	1000kΩ	1000kΩ	1000kΩ	1000kΩ	1000kΩ
Continuity	10Ω	10Ω, 100Ω	10Ω, 100Ω	10Ω, 100Ω	10Ω, 100Ω	10Ω, 100Ω
Test Current	200mA/20mA	200mA/20mA	200mA/20mA	200mA/20mA	200mA/20mA	200mA/20mA
Capacitance Measurement	-	-	0.1n to 10µF	0.1n to 10µF	-	-
Frequency	-	15.3 to 800Hz	15.3 to 800Hz	15.3 to 800Hz	-	-
GENERAL FUNCTIONS
Alarm	-	Yes	Yes	Yes	Yes	Yes
∆ Rel	-	Yes	Yes	Yes	Yes	Yes
Auto Power OFF	Yes	Yes	Yes	Yes	Yes	Yes
Data Hold	Yes	Yes	Yes	Yes	Yes	Yes
Test Lead Compensation	Yes	Yes	Yes	Yes	Yes	Yes
Remote Probe	Yes (optional)	Yes (optional)	Yes (optional)	Yes (optional)	Yes (optional)	Yes (optional)
Memory	-	300 measurements	1300 measurements	1300 measurements	1300 measurements	-
Bluetooth	-	-	2.1 Class II	2.1 Class II	2.1 Class II	-
DataView® Software	-	-	Included	Included	Included	-
Display Type	Digital w/Analog Bargraph	Digital w/Analog Bargraph	Digital w/Analog Bargraph	Digital w/Analog Bargraph	Digital w/Analog Bargraph	Digital w/Analog Bargraph
Display Counts	4000	4000	4000	4000	4000	4000
Backlight	Yes	Yes	Yes	Yes	Yes	Yes
Safety	600V CAT IV	600V CAT IV	600V CAT IV	600V CAT IV	600V CAT IV	600V CAT IV
Power Supply	6 x AA Alkaline	6 x AA Alkaline	6 x AA Alkaline	6 x AA Alkaline	6 x AA Alkaline	6 x AA Alkaline
Protection	IP 54/IK 04	IP 54/IK 04	IP 54/IK 04	IP 54/IK 04	IP 54/IK 04	IP 54/IK 04
Magnetic Mount	Yes	Yes	Yes	Yes	Yes	Yes
Additional Features	-	-	Green/Red Pass/Fail Indicator	Cable length measurement (0 to 100km)	-	-
Applications	Industrial Maintenance	Industrial Maintenance	Industrial Maintenance	Telecom	Electronics, ESD	Avionics, Space, Defense
ELECTRICAL
Model	6610
Measurement Principle	Static induction
Frequency Range	45 to 65Hz
Auto-Off	5 min. after power on without detection
Low Battery Warning	Power LED flashes at ≤ 7V ± 0.2V
Power Supply	1 x 9V alkaline battery
MECHANICAL
Cable Length	Approx. 2.5 ft (800mm)
Dimensions	5.0 x 2.8 x 1.8" (128 x 72 x 46mm)
Weight	0.82 lbs (375g) including battery
ENVIRONMENTAL
Operating Temperature & Humidity	14° to 122°F (-10° to 50°C) Max. 80% R.H.
Storage Temperature & Humidity	-4° to 140°F (-20° to 60°C) Max. 80% R.H.
SAFETY
Safety Ratings	EN 61010-1, 1000V CAT III / 600V CAT IV, EN 61326-1
MODELS	401/601 TRMS	203/403/603 TRMS	205/405/605 TRMS
ELECTRICAL
Current AC (rms)	1000/2000A	600/1000/2000A	600/1000/2000A
Current DC	-	900/1500/3000A	900/1500/3000A
Current AC+DC	-	-	900/1500/3000A
Voltage AC (rms)	1000/1000V	1000/1000/1000V	1000/1000/1000V
Voltage DC	1000/1000V	100/1000/1000V	1000/1000/1000V
Voltage AC+DC	-	-	1000/1000/1000V
Ohms	100/100kΩ	60/100/100kΩ	60/100/100kΩ
Continuity (Buzzer)	Yes (< 40Ω)	Yes (< 40Ω)	Yes (< 40Ω)
Diode Test	Yes	Yes	Yes
Total Harmonic Distortion	-	-	Yes
Single- and 3-Phase Real Power (AC, DC, AC/DC)*	-	-	600/1000/2000kW 3000/6000kW
Single- and 3-Phase Reactive Power (AC, DC, AC/DC)*	-	-	600/1000/2000kvar 3000/6000kvar
Single- and 3-Phase Apparent Power (AC, DC, AC/DC)*	-	-	600/1000/2000kVA 3000/6000kV
Temperature (int., ext., C°, F°)	Yes	Yes	-
Voltage Frequency (Hz)	20kHz	20kHz	20kHz
Current Frequency (Hz)	2kHz	3/2/2kHz	2kHz
Power Function (W, var, VA)	-	-	Yes
Power Factor	-	-	Yes
THD-r/THD-f	-	-	Yes
Adapter (AC/DC)	-	0 to 10V	-
Phase Rotation	-	-	Yes (2 wire)
Auto AC/DC	Yes (V)	Yes (V & A)	Yes (V & A)
Auto Power OFF	Yes	Yes	Yes
Hold Button	Yes	Yes	Yes
Backlight Button	Yes	Yes	Yes
Min/Max Button	Yes	Yes	Yes
True InRush® Function	Yes	Yes	Yes
Relative Function	-	Yes	Yes
Peak ± Function	-	-	Yes
Hz Button	Yes	Yes	Yes
*3-phase measurements assume balanced load

Test Equipment General Attributes
Shipping Weight	28.00 LBS
Country of Origin	France
