0 reviews | Catalog: 2133.1 | UPC: 685338120066 | Model: AEMC Instruments 2133.10

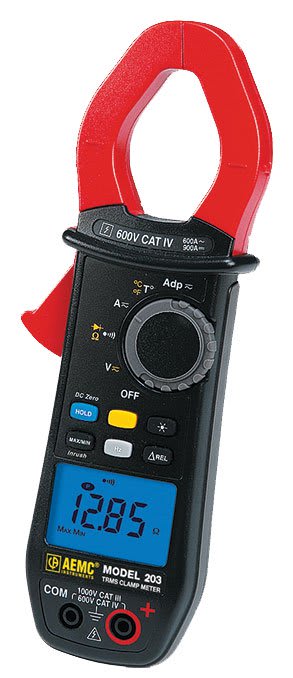

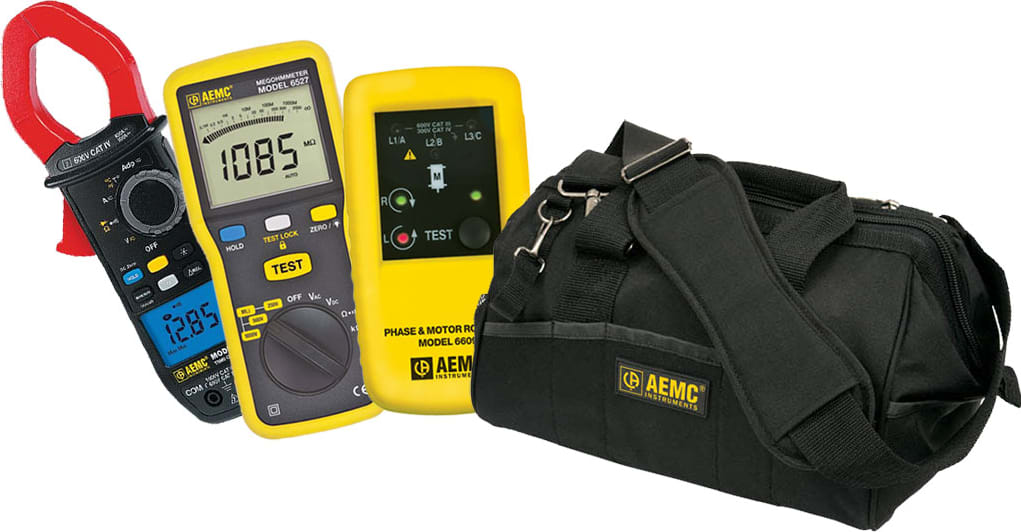

Motor Test Kit (Low Voltage) includes: Model 6609, 6527, 203 and tool bag
List Price: $499.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.

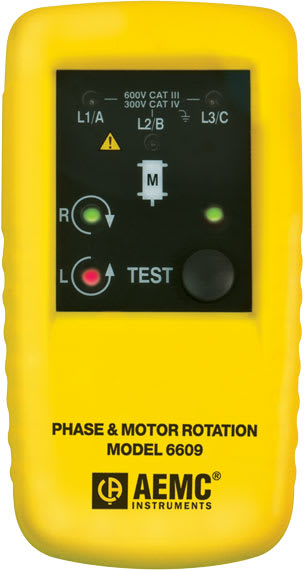

The Model 6609 is also an ideal tool for measuring the proper rotation of motors, conveyors, pumps, and other electrical devices interconnected on the power line system before installation where the direction of rotation is dependent on proper phase hook-up. The Phase Rotation Meter Model 6609 is a compact and rugged meter designed to identify phase rotation on 3-Phase systems and identify live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output.

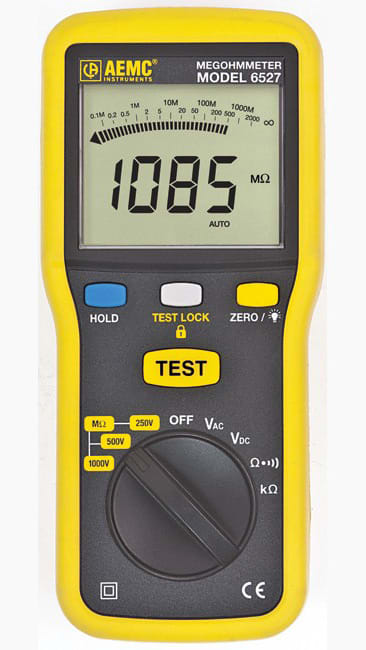

The Model 6527 is a portable multi-range megohmmeter capable of measuring insulation resistance from 1kΩ to 4000MΩ. It has three user-selectable test voltages of 250V, 500V, and 1000V. The Model 6527 is also a multimeter that features an AC/DC voltmeter function capable of measuring up to 600VAC and 1000VDC, a continuity test function with an audible beeper for resistances under 35Ω, and overload protection of 600Vrms. In addition, it can measure resistance up to 400kΩ. The TEST button has an associated locking feature for continuous tests up to 15 minutes, eliminating the need to manually hold down the button. This lightweight, easy-to-use megohmmeter can be used for most commonly performed insulation tests, such as on cables, switch gears, motors, DC generators, power tools, and small appliances.
