AEMC LM103 - AC Current Probe (200A/1mv/A, Lead)

Name: AEMC LM103 - AC Current Probe (200A/1mv/A, Lead)
Brand: AEMC Instruments
SKU: AEMCLM103
Price: 293.55 USD
Availability: InStock

0 reviews | Catalog: 2153.05 | UPC: 685338030471 | Model: AEMC Instruments LM103

Compare

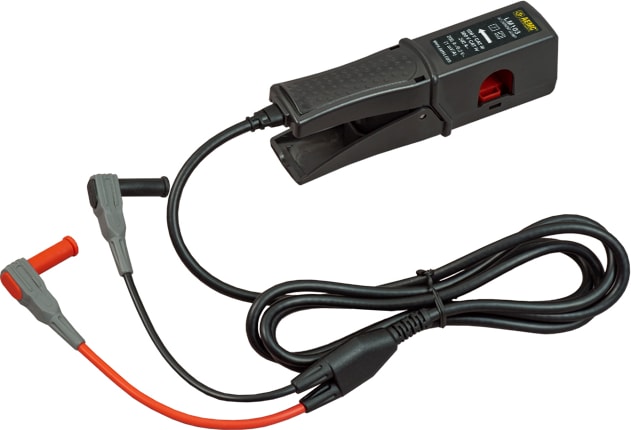

AC Current Probe Model LM103 (200A/1mv/A, Lead)

Clamping diameter 0.63” (16mm)
Over range up to 350 Amps continuous
Clothespin design allows access to tight places
Measurement range: 100mA to 200A
Transformation ratio: Voltage output
Output signal: 1mV/A (200mVac @ 200A)
Phase shift: ≤3°
Load impedance: ≥10kΩ
Arrow marker clearly assists in proper orientation for power measurement applications

View Product Details

List Price: $309.00

Your Price: $293.55

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

AEMC LM103

Maximum Conductor: Size .63" (16mm)
Current Range: 200Arms AC
Measurement Range: 0.01 to 350A
Output Signal: 1mV/A AC (200mV @ 200A)
Transformation Ratio: 1000:1
Accuracy 50/60Hz: 1.5% ± 0.02A
Frequency Range: 48Hz to 10kHz

AC Current Probe (200A/1mv/A, Lead)

The LM103 is a general-purpose AC current probe designed for Power analyzer, DMM and other measuring instruments with voltage input. It has an output of 1mV per Amp. The LM103 has integral 5 ft (1.5m) leads terminated by safety 4mm banana plugs.

Tech Specs

Accessories/Probes/Multimeter Probes Template
Safety Voltage Rating	600V
CAT Voltage Rating	III
Test Equipment General Attributes
Unique Features	100mA to 200A measurement range
Safety Approval	CE
IP Rating	IP40
Product Weight	0.55 LBS
Product Height	5.12 IN
Product Length	1.34 IN
Product Width	1.81 IN
Shipping Weight	6.00 LBS
Country of Origin	France
