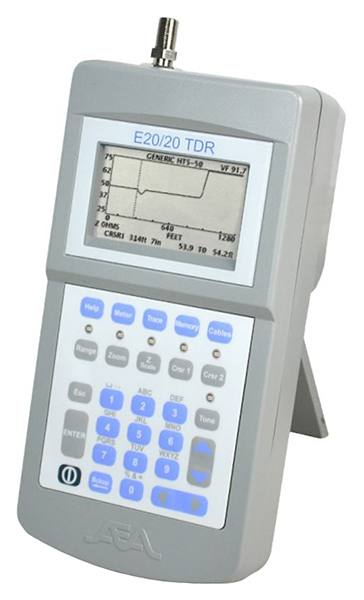

AEA E20/20F Network TDR Kit with CATV Option (6021-5141)
Benefits
- Coax and twisted pairs testing using same TDR
- Accurate and clearer trace indication of faults
- More advanced features to aid troubleshooting
- Save, upload, print or email traces
- Find faults other TDR's miss
- Clear trouble more quickly with less testing
- Upload, download, and customize cable lists
- Saved traces are also saved setups for recall
- Noise detections and noise filter
- Locate coax runs or pairs quickly using Tone Function
- Setup Wizard makes training interactive
- "Belt Friendly" size and only 2 lbs (900g)
Ultimate in Hand-Held Step TDR Technology
The NEW enhanced version of the 20/20 Step TDR is ideal for troubleshooting OSP all types of coax, OSP cables, twisted pairs Cat2 to Cat6A and single wires in bundle/harness. It is based on the current 20/20 TDR employing "Step" technology's amazingly accurate fault locating and display capabilities. The E20/20 TDR stores, recalls and uploads traces to a PC by name, date and time. It has a user friendly interface to reduce technician learning curve and training time. Including features like Setup Wizard, named Menu keys, and Context Sensitive Help.
The E20/20 TDR also has new MicroFault locating for small coax kinks and crushes that might be service affecting, but hard to see on a normal TDR trace. It has larger clearer display fonts and LED indicators for active Function Keys. The E20/20 TDR is ideal for testing and troubleshooting Coax, Twinax, Triax, Telco OSP, or LAN twisted pairs Cat 2 to Cat 6A. The E20/20 TDR comes in a variety of connector configurations. Its internal Cable List holds 64 cable types, can be user edited, and modified lists can be uploaded or downloaded to a PC using ETDR PC Vision™ software.
Coax-high impedance (Z) & open far end
Coax crimp using MicroFault locating

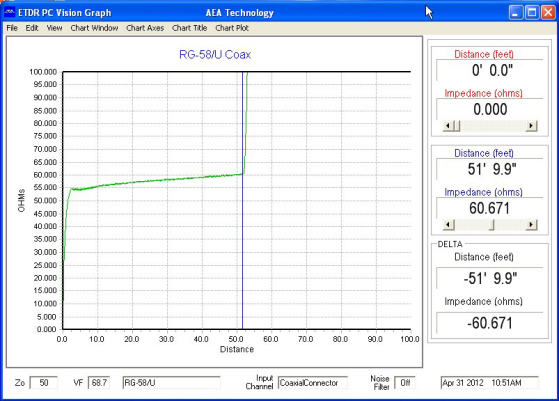

ETDR PC Vision Graphical Display
Fault locating for: Opens , shorts, bridged taps, split and resplit pairs, water, chaffing damage, coax crimps and splices, shunt faults, series resistive faults, splitters. Any impedance or loop resistance affecting fault.
Micro Fault locating: Two modes designed to pin-point small faults easy to miss on any full TDR trace. Particularly on long coax cables.
Stores: 32 Traces and instrument setups. 64 Cable types with their impedance and velocity.
Help: Both a Setup Wizard for step-by-step guided startups and one-button context sensitive help for all menus and functions.The E20/20 Step TDR is guaranteed to save time and money by quickly and accurately locating even small cable faults and by not chasing cable faults that don't exist.View the applicable data sheet below for more details and key specifications.
