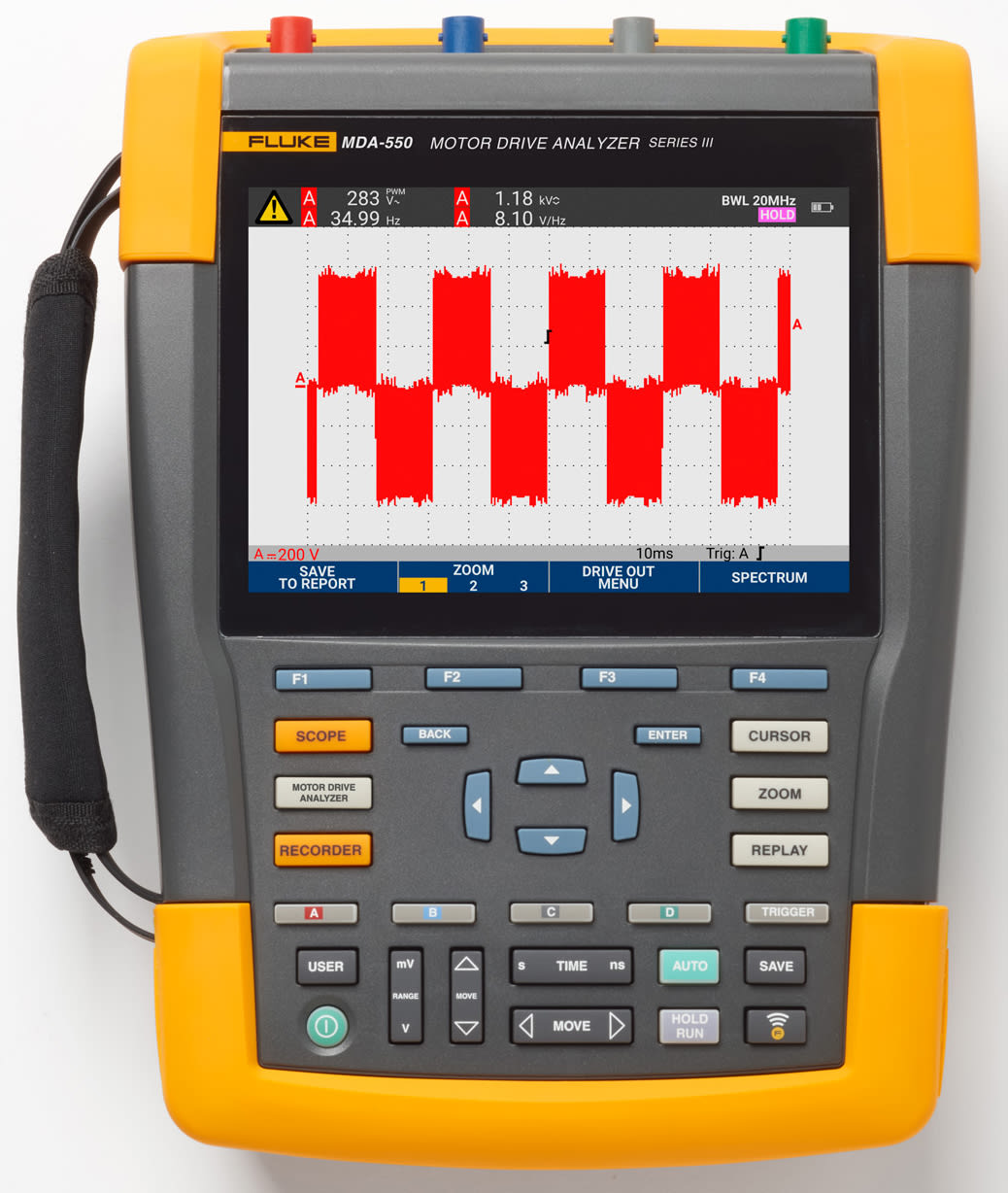

Fluke MDA-550-III - Motor Drive Analyzer, 500 MHz, 4 Channel

Name: Fluke MDA-550-III - Motor Drive Analyzer, 500 MHz, 4 Channel
Brand: Fluke
SKU: FlukeMDA-550-III
Price: 8890.99 USD
Availability: InStock

0 reviews | Catalog: 5282560 | UPC: 195112021958 | Model: Fluke MDA-550-III

Images (7)

Compare

List Price: $657.95

Your Price: $559.26

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!

View Payment Options

Request Quote

FLUKE-MDA-550-III, MOTOR DRIVE ANALYZER 4CH CLR PRO

Key Measurements: Inverter output voltage, DC bus voltage/ripple voltage, harmonics, unbalance
Three-tools-in-one: Motor-drive analyzer, waveform analyzer, and recording data logger
600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
Guided measurements with graphical step-by-step connection diagrams
Perform extended harmonics measurements
Reporting and analysis with built-in report generator
Measure additional electrical parameters with full 500 MHz oscilloscope, meter, recorder

View Product Details

Promotional Kits:
