Oil Intensifier w/Filter Package, 1 : 5.0 Intensification Ratio

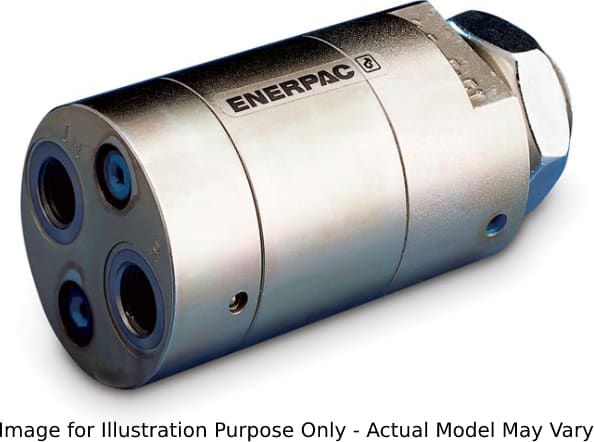

The Enerpac PIN501F is an oil intensifier with a filter package. It features a 1:5.0 intensification ratio and a 95-cu.in maximum outlet flow. The compact and self-contained design allows for ease of installation. Its internal bypass valving enables high output flow rates. The selective fit of all internal components provides long operating life.
When hydraulic pressure from an existing power source is limited, Enerpac oil-to-oil intensifiers serve to increase output pressure to satisfy the required application.
Intensifier Principle:
- When oil is supplied to the inlet (IN) port, it flows freely past the check valves (CV) and the dump valve to the cylinder and advances it.
- As the inlet pressure increases, the oscillating pump (OP) automatically increases the outlet pressure by the chosen intensification.
- Once the maximum pressure is reached, the pump frequency lowers and balances at the maximum pressure.
- Free flow from the cylinder to the tank occurs when the directional control valve is switched to supply the R-port.
- 10-micron filtration is required on all ports in the circuit to ensure trouble-free operation. Filters and flow control are included.
